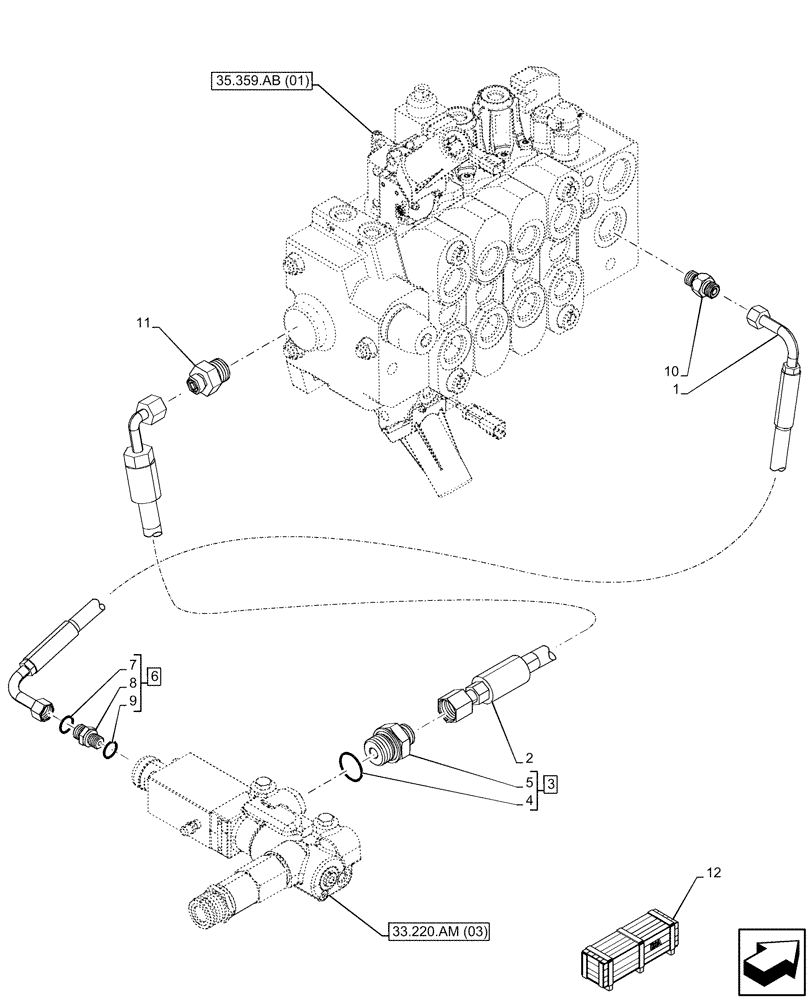

Запчасти Case IH FARMLIFT 935 (33.220.AF[02]) - VAR - 749295 - TRAILER BRAKE, LINES, DIRECTIONAL CONTROL VALVE (33) - BRAKES & CONTROLS

1

47626287

HYDRAULIC HOSE

Directional Control Valve to Brake Valve Port LS

1шт.

2

47576888

HYDRAULIC HOSE,9.53mm ID x 1085mm L, SAE 100R8

Directional Control Valve to Brake Valve Port P

1шт.

3

71482666

TEE,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 4 - 5

1шт.

4

71443112

O-RING,M19.3 ID x 2.3 Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

85809270

FITTING,9/16"-18 ORFS x M10 x 1 ORB

ASSY, Incl 7 - 9

1шт.

7

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

9

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

10

47411916

CHECK VALVE

1шт.

11

87312414

FITTING

1шт.

12

47610736

CONSTRUCTION DIA

Trailer Brake Kit, European Market, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, FARMLIFT 635, LM9.35, LM9.35 FLEX, FARMLIFT 935LM7.35 DA, FARMLIFT 735 DA, LM6.32 NRC, LM7.35 NRC, LM9.35 NRC

1шт.
