Запчасти Case IH FARMLIFT 935 (33.220.AC[02]) - VAR - 749240, 749295 - TRAILER BRAKE, LINES, REAR AXLE (33) - BRAKES & CONTROLS

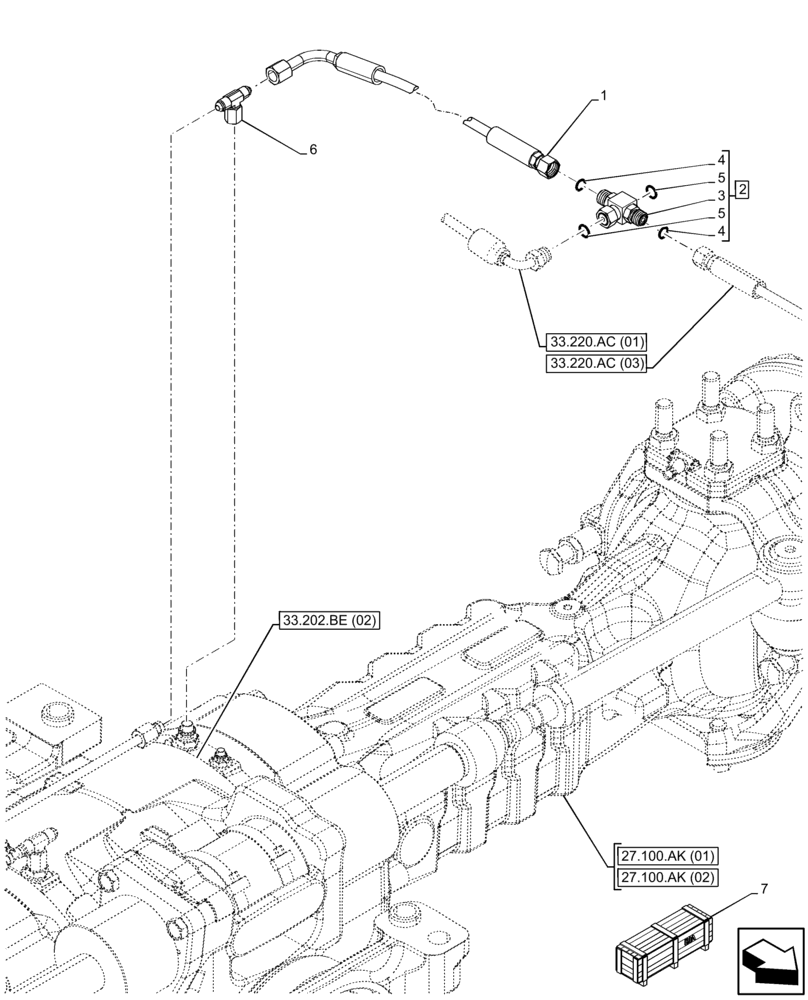

Схема запчастей Case IH FARMLIFT 935 - (33.220.AC[02]) - VAR - 749240, 749295 - TRAILER BRAKE, LINES, REAR AXLE (33) - BRAKES & CONTROLS
27.100.ak (02)
7
3
4
6
33.220.ac (01)
33.220.ac (03)
27.100.ak (01)
5
4
33.202.be (02)
1
5
2

Артикул

Название

Примечание

Количество

1

84587932

HYDRAULIC HOSE,6.35mm ID x 1650mm L, SAE 100R14

Trailer Brake to Rear Axle

1шт.

2

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

6

79054252

FITTING

1шт.

7

47613378

CONSTRUCTION DIA

Trailer Brake Kit, European Market, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.35, FARMLIFT 635, LM7.42, LM7.42 FLEX, FARMLIFT 742, LM6.35 NRC, LM7.42 NRC

1шт.

7

47610736

CONSTRUCTION DIA

Trailer Brake Kit, European Market, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, FARMLIFT 635, LM9.35, LM9.35 FLEX, FARMLIFT 935LM7.35 DA, FARMLIFT 735 DA, , LM6.32 NRC, LM7.35 NRC, LM9.35 NRC

1шт.
