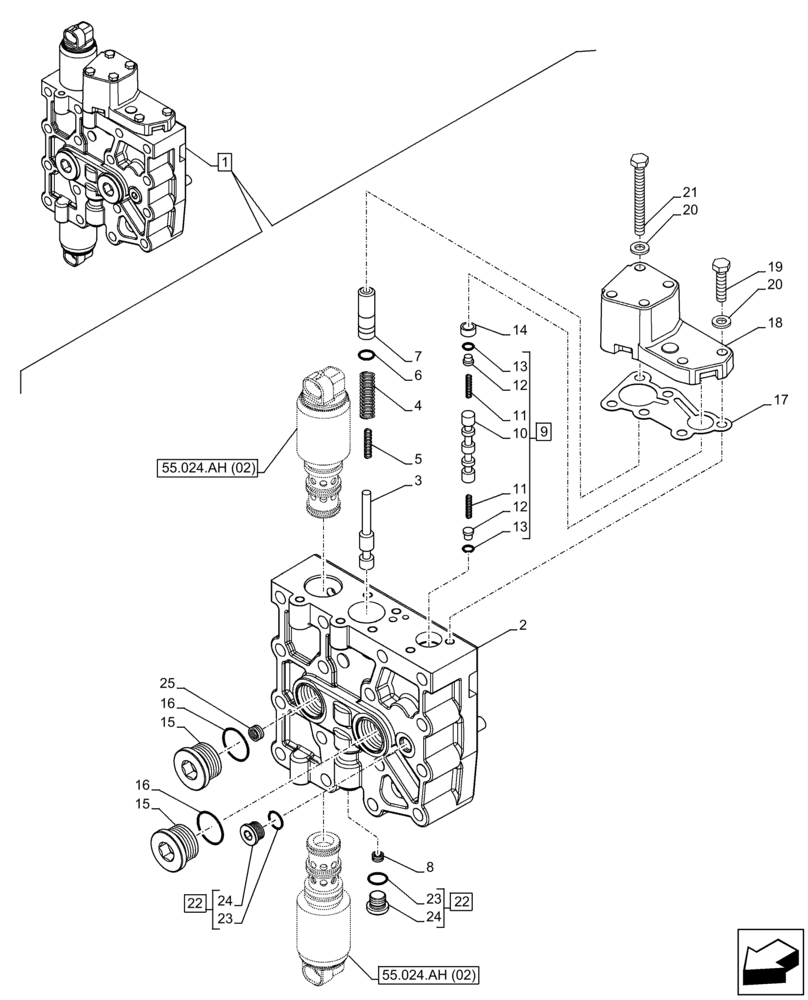

Запчасти Case IH FARMLIFT 935 (21.135.AQ[02]) - TRANSMISSION, POWERSHIFT, CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

1

47590386

CONTROL VALVE

ASSY, Incl 2 - 25

1шт.

See Trasmission Control Valve Components also in Figure 55.024.AH (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

47596486

CONTROL

1шт.

4

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

6

E135116

SHIM

0.20mm Thk

1шт.

6

E135115

SHIM

0.30mm Thk

1шт.

6

E135114

SHIM,0.5mm Thk

0.50mm Thk

1шт.

6

E135118

SHIM

1.00mm Thk

1шт.

6

E135119

SHIM,2.0mm Thk

2.00mm Thk

1шт.

7

47596491

PISTON

1шт.

8

47549823

ORIFICE

1шт.

9

47549824

VALVE

ASSY, Incl 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 9

2шт.

12

47549828

SPRING SEAT

2шт.

13

NSS

NOT SOLD SEPARAT

Snap Ring, Incl in 9

2шт.

14

47549831

SPACER

1шт.

15

47549832

PLUG

1шт.

16

8603208

O-RING,2mm Thk x 21mm ID

1шт.

17

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

18

47549835

COVER

1шт.

19

47549836

SCREW

2шт.

20

47549838

WASHER

6шт.

21

47549840

SCREW

4шт.

22

84408666

PLUG

ASSY, Incl 23 - 24

2шт.

23

S300491

O-RING,8mm ID x 1.5mm Width

2шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 22

2шт.

25

E135132

SPRING

1шт.
