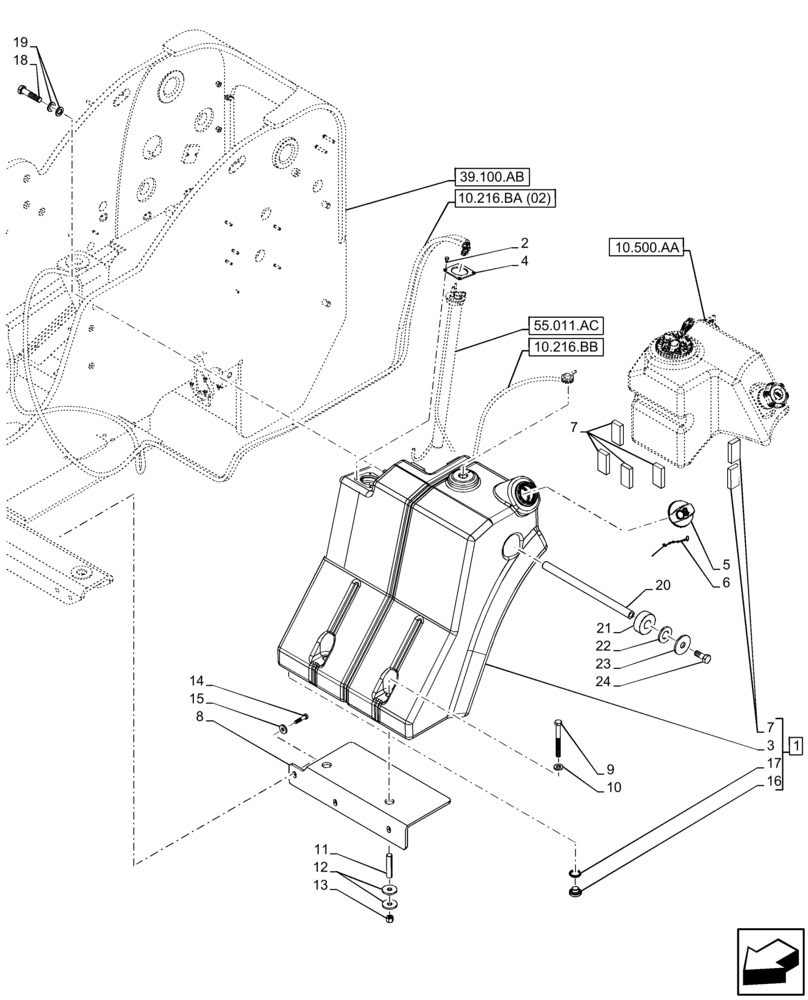

Запчасти Case IH FARMLIFT 742 (10.216.AI) - FUEL TANK (10) - ENGINE

1

84513154

FUEL TANK

ASSY, Incl 3, 7, 16, 17

1шт.

2

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

3

NSS

NOT SOLD SEPARAT

Fuel Tank, Incl in 1

1шт.

4

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

5

84594321

LOCKABLE FUEL CAP

1шт.

6

87611758

CAP

1шт.

7

47510382

PAD

6шт.

8

84529062

BRACKET

1шт.

9

362573

BOLT,Hex, M16 x 150mm, Cl 8.8

2шт.

10

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

11

84595676

BUSHING

2шт.

12

337522

WASHER,17.5mm ID x 56mm OD x 5mm Thk

4шт.

13

12577411

NUT,M16 x 2, Cl 8

2шт.

14

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

15

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

3шт.

16

82019464

PLUG,3/4" GAS x 13.5mm L

1шт.

17

14463889

O-RING,34.52mm ID x 3.53" Width

1шт.

18

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

19

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

20

47510380

ROD

1шт.

21

47510363

GROMMET

1шт.

22

87036956

WASHER,32.8mm ID x 66.5mm OD x 6mm Thk

1шт.

23

47510385

SPACER

1шт.

24

11124731

BOLT,Hex, M20 x 50, 10.9

1шт.
