(90.160.AO[02]) - INSTRUMENT CLUSTER, FRONT, CONSOLE

Запчасти Case IH FARMLIFT 742 (90.160.AO[02]) - INSTRUMENT CLUSTER, FRONT, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

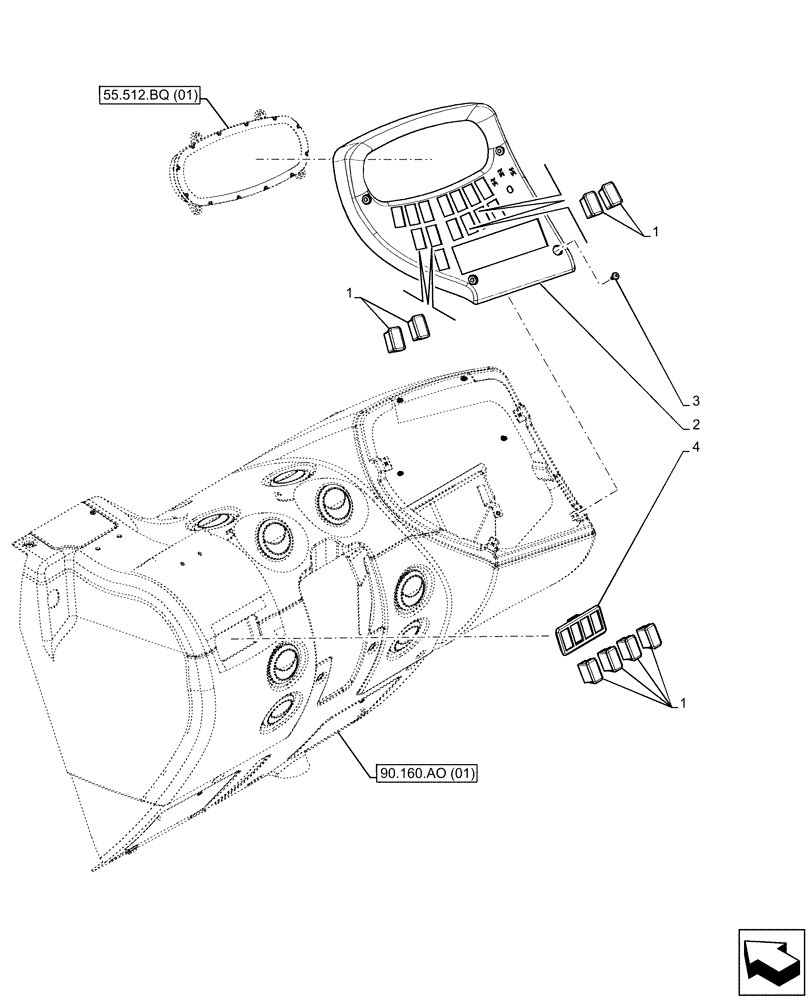

Схема запчастей Case IH FARMLIFT 742 - (90.160.AO[02]) - INSTRUMENT CLUSTER, FRONT, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
55.512.bq (01)
2
3
90.160.ao (01)
1
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71451827

PLUG

8шт.

2

84569512

DASHBOARD

1шт.

3

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

4шт.

4

84582441

CONSOLE

1шт.

Выбрано товаров: 4
