(90.150.BJ[02]) - VAR - 702008 - CAB GUARD, NO CHOICE FOR FRONT OR TOP

Запчасти Case IH FARMLIFT 742 (90.150.BJ[02]) - VAR - 702008 - CAB GUARD, NO CHOICE FOR FRONT OR TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

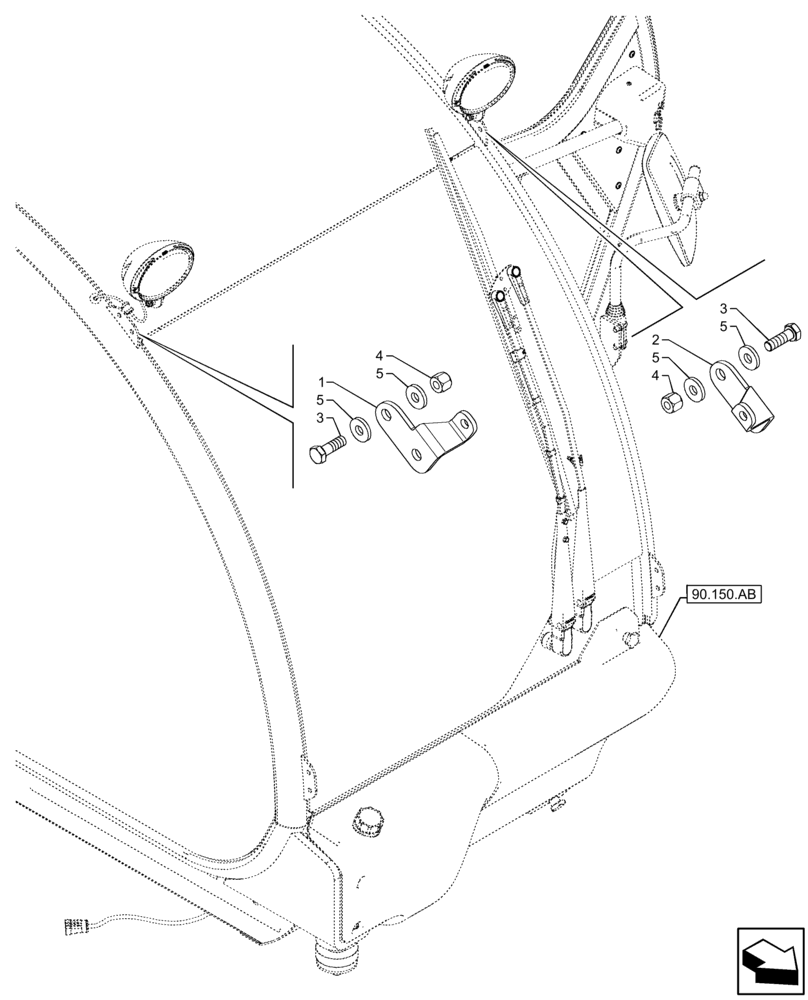

Схема запчастей Case IH FARMLIFT 742 - (90.150.BJ[02]) - VAR - 702008 - CAB GUARD, NO CHOICE FOR FRONT OR TOP (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
5
5
4
4
2
5
1
90.150.ab
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47625140

BRACKET

RH

1шт.

2

47625138

BRACKET

LH

1шт.

3

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

4

16104121

NUT,M8 x 1.25, Cl 10

4шт.

5

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

8шт.
