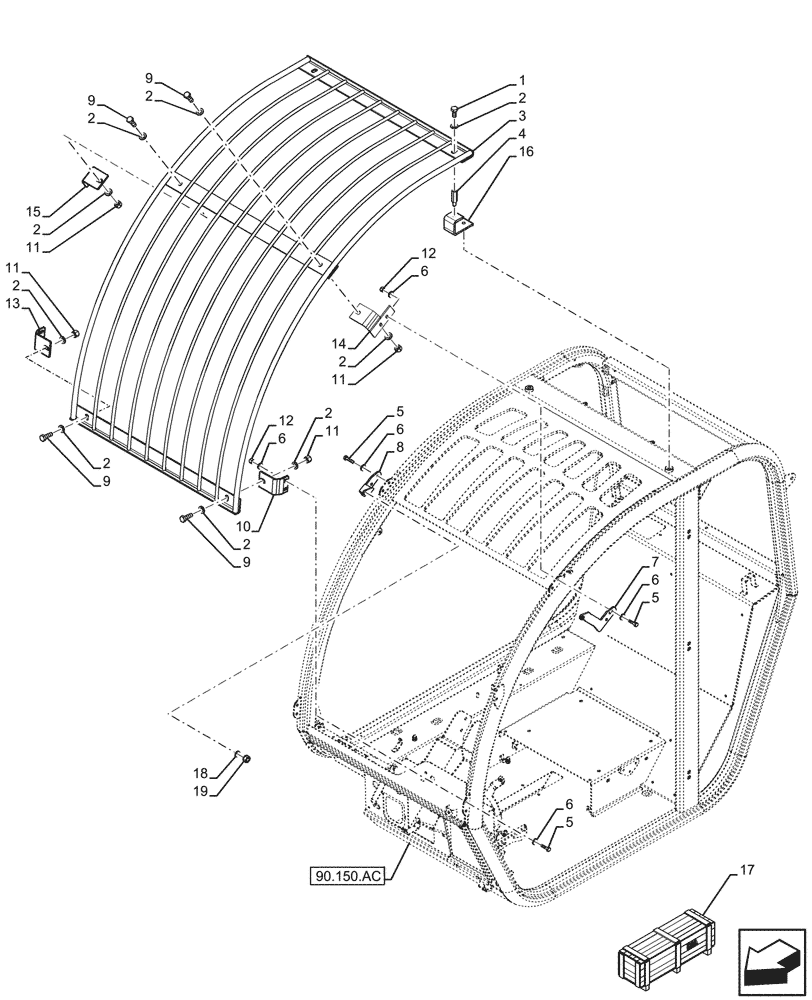

Запчасти Case IH FARMLIFT 742 (90.150.BJ[01]) - VAR - 749041 - CAB GUARD, WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

2

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

10шт.

3

84590229

GUARD

1шт.

4

76090370

SPACER

2шт.

5

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

16шт.

7

47740769

BRACKET

LH

1шт.

8

47740770

BRACKET

RH

1шт.

9

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

10

47740855

BRACKET

LH

1шт.

11

12577521

NUT,M12 x 1.75

4шт.

12

16104121

NUT,M8 x 1.25, Cl 10

8шт.

13

47740808

BRACKET

RH

1шт.

14

47740797

BRACKET

LH

1шт.

15

47740793

BRACKET

RH

1шт.

16

47740740

BRACKET

2шт.

17

47610470

CONSTRUCTION DIA

Full Front Windscreen Guard, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

18

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

2шт.

19

353308

NUT,M6 x 1.0, Cl 8

2шт.
