(90.150.BB) - CAB SUPPORT

Запчасти Case IH FARMLIFT 742 (90.150.BB) - CAB SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

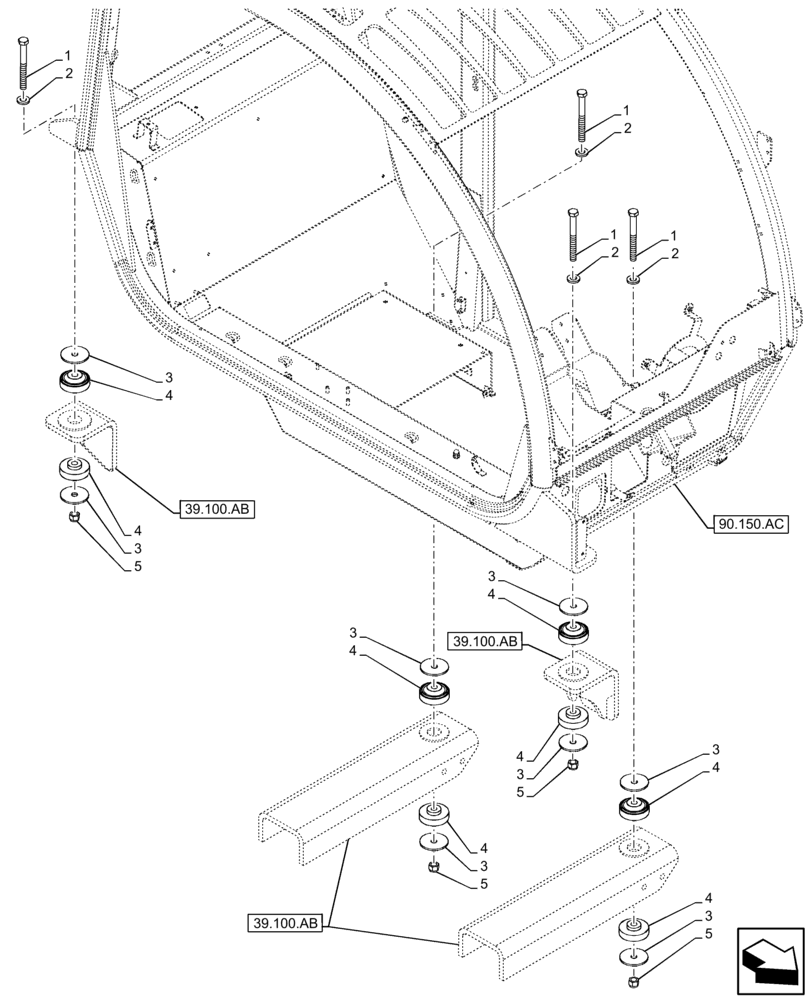

Схема запчастей Case IH FARMLIFT 742 - (90.150.BB) - CAB SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
1
4
3
39.100.ab
3
4
2
5
4
4
5
3
4
3
90.150.ac
3
39.100.ab
3
2
39.100.ab
4
4
3
3
2
4
1
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84439252

BOLT,Hex, M16 x 150mm, Cl 10.9

4шт.

2

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

3

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

8шт.

4

84383342

MOUNT

8шт.

5

412066

NUT,M16 x 2.0, Cl 8

4шт.
