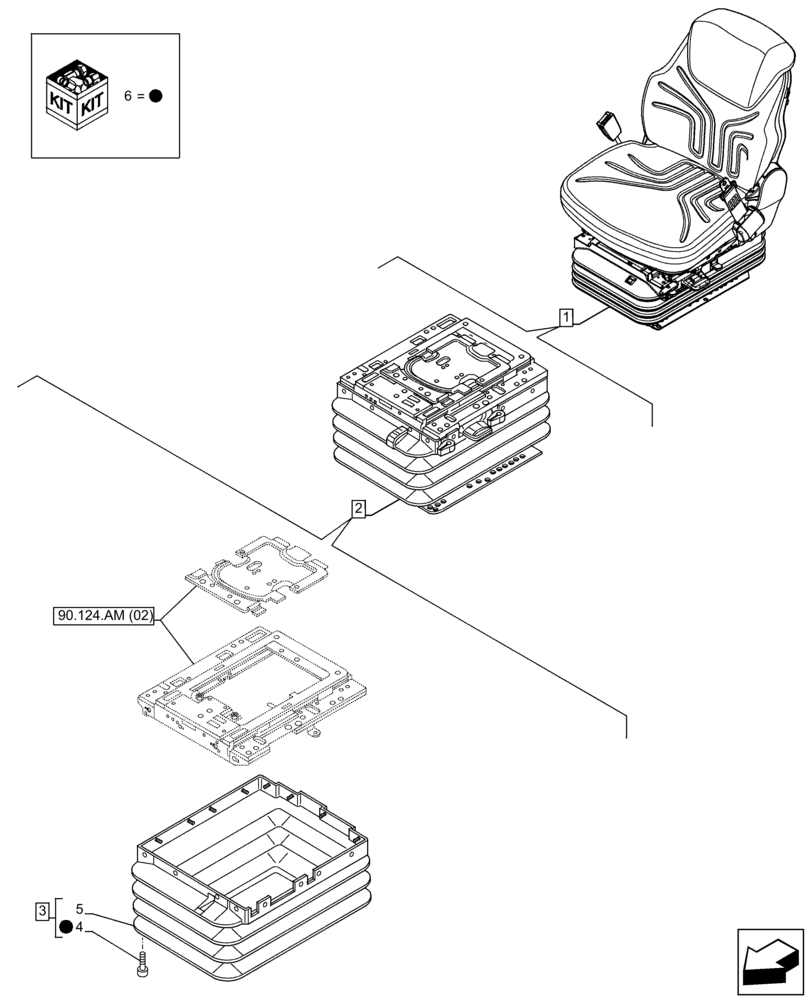

Запчасти Case IH FARMLIFT 742 (90.124.AR) - VAR - 749490 - SEAT, AIR SUSPENSION, BELLOWS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444280

DRIVER SEAT

ASSY, Incl 2 - 6

1шт.

See Seat Components also in Figures 55.408.BL (02), 55.512.CQ, 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AL, 90.124.AM (01), 90.124.AM (02), 90.124.AN, 90.124.AP, 90.151.AD (02)

1шт.

2

47613384

SUSPENSION

ASSY, Incl 3 - 5

1шт.

3

84190978

BELLOWS

ASSY, Incl 4, 5

1шт.

4

84191003

REPAIR KIT

Bellow Mounting Parts

1шт.

5

NSS

NOT SOLD SEPARAT

Bellow, Incl in 3

1шт.

6

84190975

REPAIR KIT

Wear Parts

1шт.

See Wear Parts Kit Components also in Figures 55.512.CQ, 90.124.AM (02), 90.124.AN, 90.124.AP

1шт.
