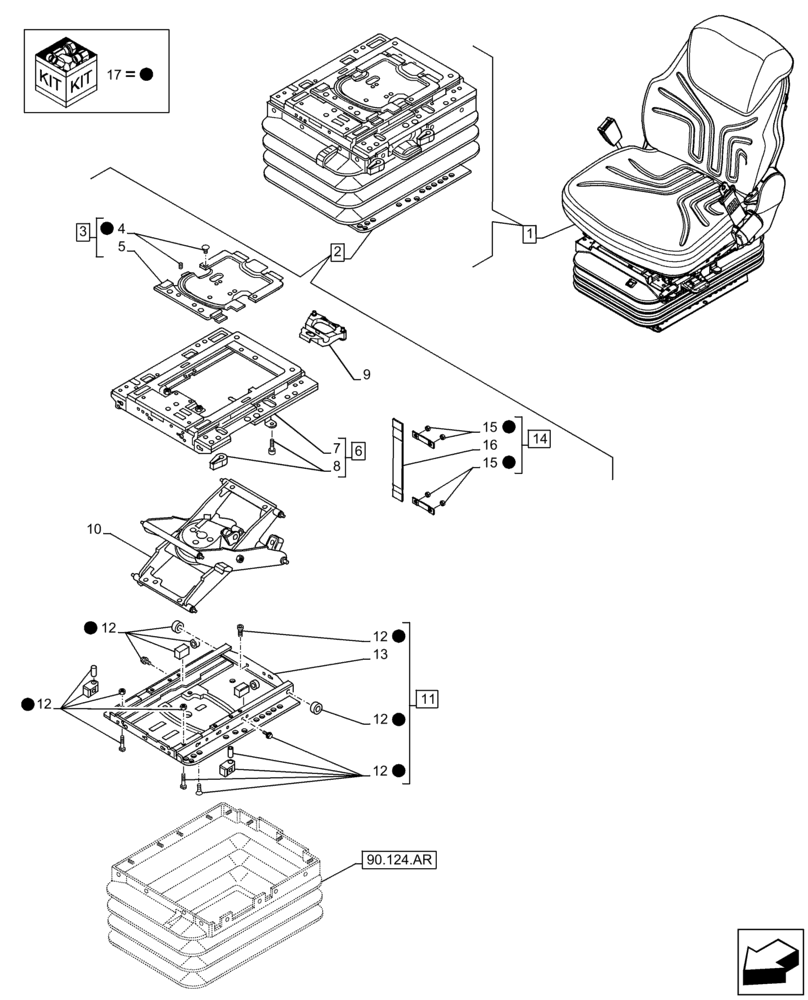

Запчасти Case IH FARMLIFT 742 (90.124.AM[02]) - VAR - 749490 - SEAT, AIR SUSPENSION, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444280

DRIVER SEAT

ASSY, Incl 2 - 17

1шт.

See Seat Components also in Figures 55.408.BL (02), 55.512.CQ, 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AL, 90.124.AM (01), 90.124.AN, 90.124.AP, 90.124.AR, 90.151.AD (02)

1шт.

2

47613384

SUSPENSION

ASSY, Incl 3 - 16

1шт.

3

84190947

COVER

Upper, ASSY, Incl 4, 5

1шт.

4

84191006

REPAIR KIT

Upper Cover Mounting Parts

1шт.

5

NSS

NOT SOLD SEPARAT

Upper Cover, Incl in 3

1шт.

6

84336513

SUSPENSION

Upper Plate, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Upper Plate, Incl in 6

1шт.

8

84191010

REPAIR KIT

Upper Plate Mounting Parts

1шт.

9

84255280

THRUST BEARING

1шт.

10

84255282

KIT

Scissors

1шт.

11

84190976

PLATE

Lower Plate, ASSY, Incl 12, 13

1шт.

12

84191014

REPAIR KIT

Lower Plate Mounting Parts

1шт.

13

NSS

NOT SOLD SEPARAT

Lower Plate, Incl in 11

1шт.

14

47615027

BELT

Belt, ASSY, Incl 15, 16

1шт.

15

84280027

KIT

Belt Mounting Parts

1шт.

16

NSS

NOT SOLD SEPARAT

Belt, Incl in 14

1шт.

17

84190975

REPAIR KIT

Wear Parts

1шт.

See Wear Parts Kit Components also in Figures 55.512.CQ, 90.124.AN, 90.124.AP, 90.124.AR

1шт.
