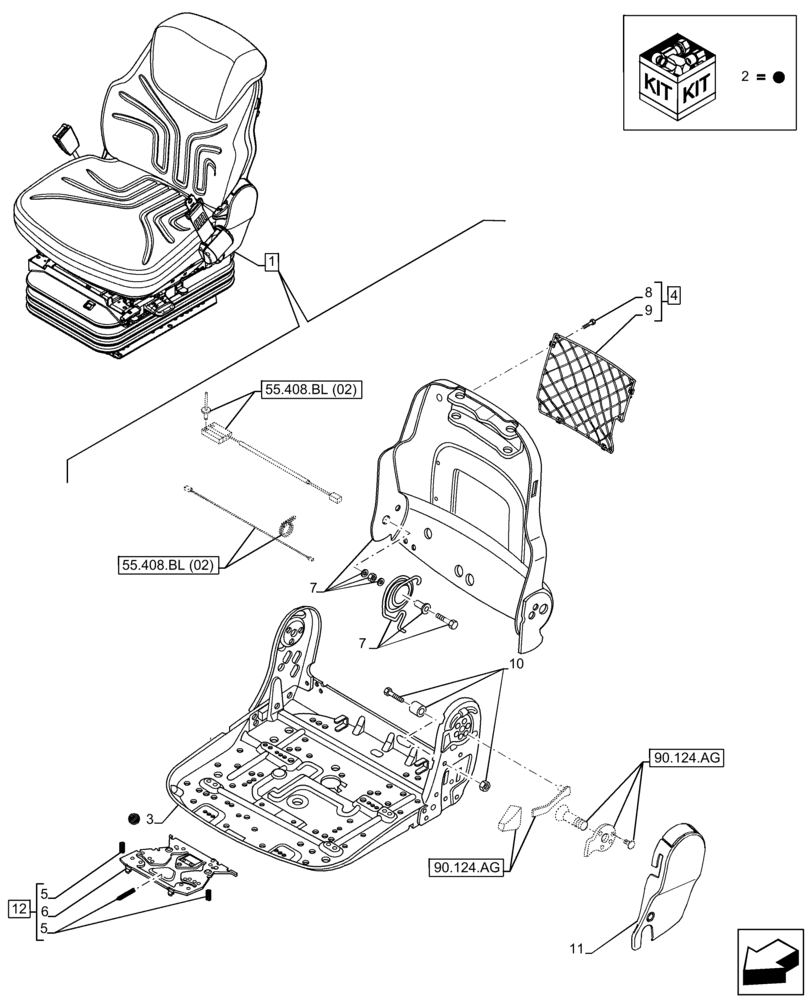

Запчасти Case IH FARMLIFT 742 (90.124.AM[01]) - VAR - 749490 - SEAT, AIR SUSPENSION, FRAME, UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444280

DRIVER SEAT

ASSY, Incl 2 - 12

1шт.

See Seat Components also in Figures 55.408.BL (02), 55.512.CQ, 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AL, 90.124.AM (02), 90.124.AN, 90.124.AP, 90.124.AR, 90.151.AD (02)

1шт.

2

1-34-751-735

SEAT SUPPORT

ASSY, Incl 3

1шт.

See Seat Support Components also in Figure 90.124.AG

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Support, Incl in 2

1шт.

4

47576107

KIT

ASSY, Incl 8, 9

1шт.

5

84191201

SET OF PARTS

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Compensator, Incl in 12

1шт.

7

47613458

BACKREST

Frame

1шт.

8

84247569

REPAIR KIT

Document Net Mounting Parts

1шт.

9

NSS

NOT SOLD SEPARAT

Document Net, Incl in 4

1шт.

10

84280032

SCREW

1шт.

11

71491405

COVER

1шт.

12

84253109

COMPENSATOR

ASSY, Incl 5, 6

1шт.
