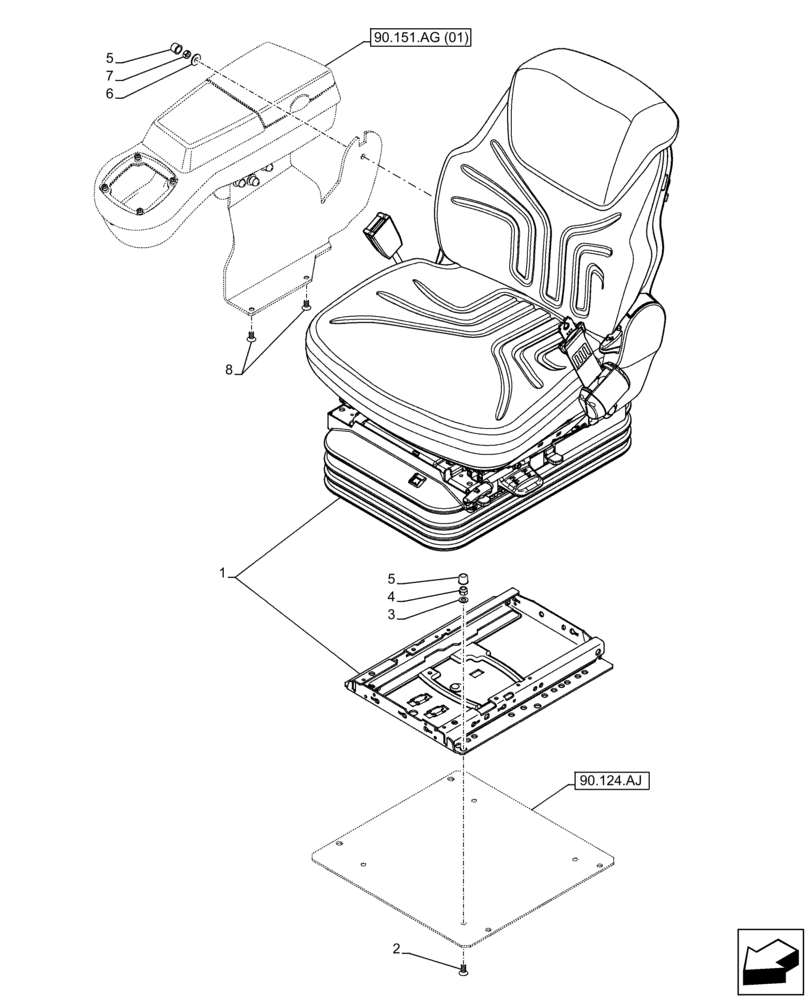

Запчасти Case IH FARMLIFT 742 (90.124.AE) - VAR - 749490 - SEAT, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444280

DRIVER SEAT

ASSY

1шт.

See Seat Components also in Figures 55.408.BL (02), 55.512.CQ, 90.124.AF, 90.124.AG, 90.124.AH, 90.124.AL, 90.124.AM (01), 90.124.AM (02), 90.124.AN, 90.124.AP, 90.124.AR, 90.151.AD (02)

1шт.

2

14442034

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

5

15811587

PROTECTION CAP,13mm x 13.5mm, Black

5шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14441924

SCREW,Hex Soc Flat Hd, M8 x 16, 8.8

2шт.
