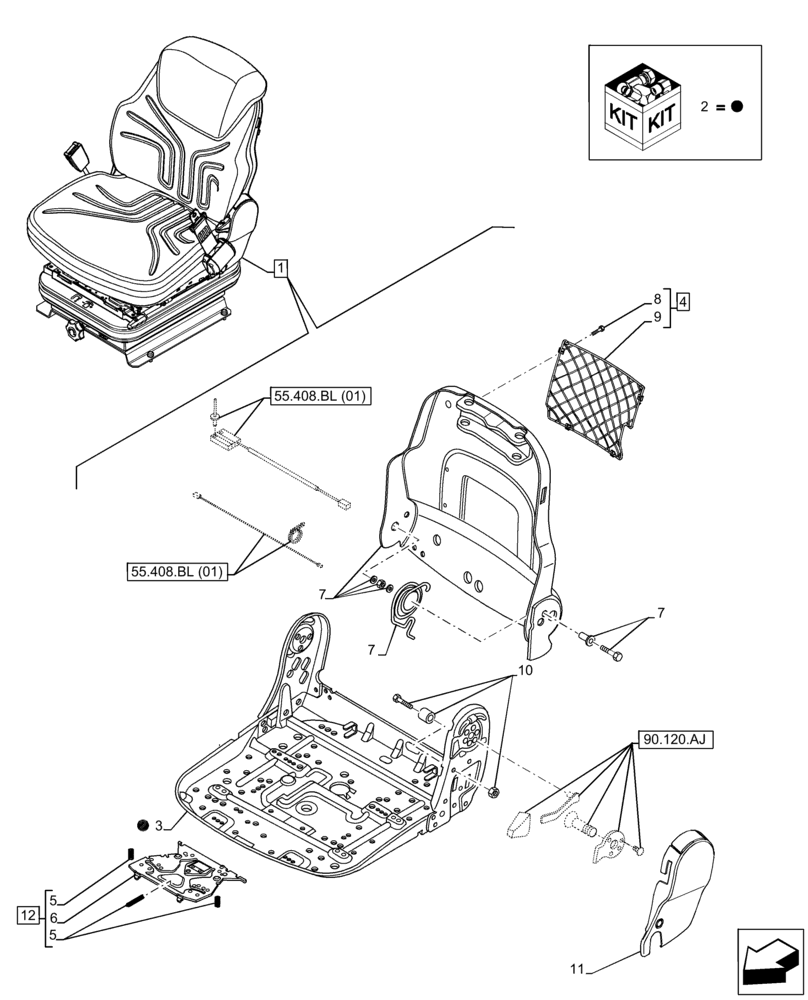

Запчасти Case IH FARMLIFT 742 (90.120.BH) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444279

DRIVER SEAT

ASSY, Incl 2 - 12

1шт.

See Seat Components also in Figures 55.408.BL (01), 90.120.AC, 90.120.AE, 90.120.AF, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.BA, 90.120.BC, 90.151.AD (01)

1шт.

2

1-34-751-735

SEAT SUPPORT

ASSY, Incl 3

1шт.

See Seat Frame Components also in Figure 90.120.BH

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Frame, Incl in 2

1шт.

4

47576107

KIT

ASSY, Incl 8, 9

1шт.

5

84191201

SET OF PARTS

Seat Mounting Parts

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Compensator, Incl in 12

1шт.

7

47613458

BACKREST

1шт.

8

NSS

NOT SOLD SEPARAT

Net Fixing Parts, Incl in 4

1шт.

9

84247569

REPAIR KIT

Net Mounting Parts

1шт.

10

84280032

SCREW

1шт.

11

71491405

COVER

ASSY, Incl 2, 3

1шт.

12

84253109

COMPENSATOR

ASSY, Incl 5, 6

1шт.
