(90.120.AM) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, BACKREST

Запчасти Case IH FARMLIFT 742 (90.120.AM) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, BACKREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

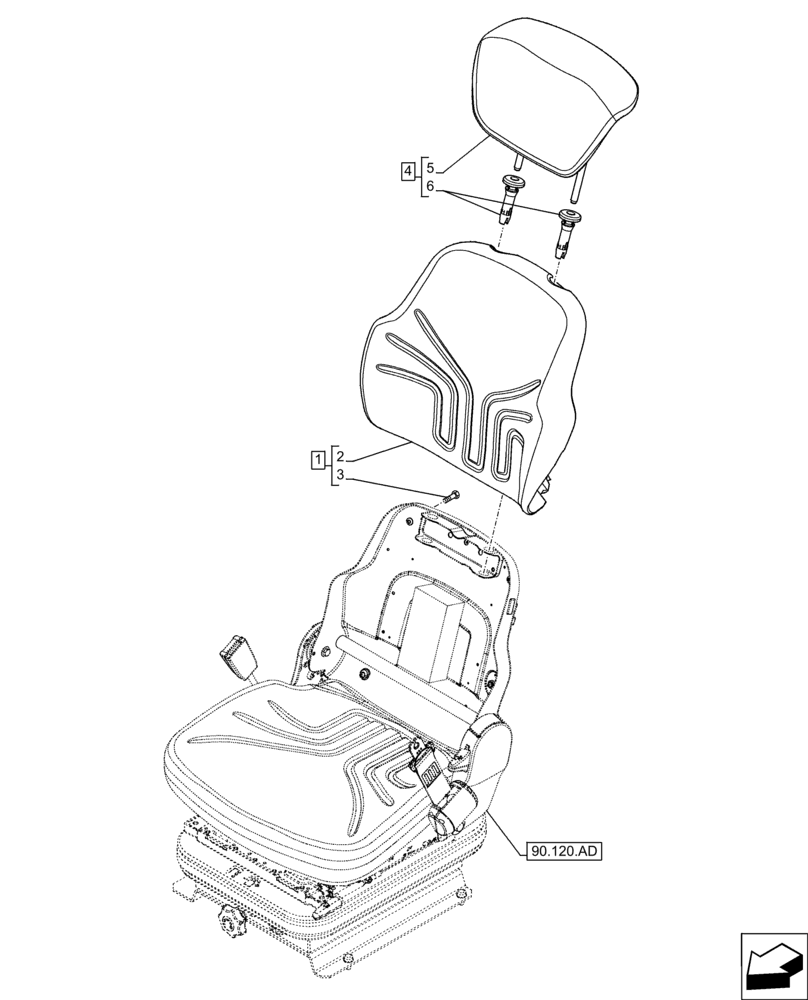

Схема запчастей Case IH FARMLIFT 742 - (90.120.AM) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION, BACKREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.ad
1
3
6
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84253107

CUSHION

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Backrest Cushion, Incl in 1

1шт.

3

84191200

SET OF PARTS

Backrest Cushion Mounting Parts

1шт.

4

84191100

SEAT HEADREST

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Headrest, Incl in 4

1шт.

6

84191112

GUIDE

1шт.
