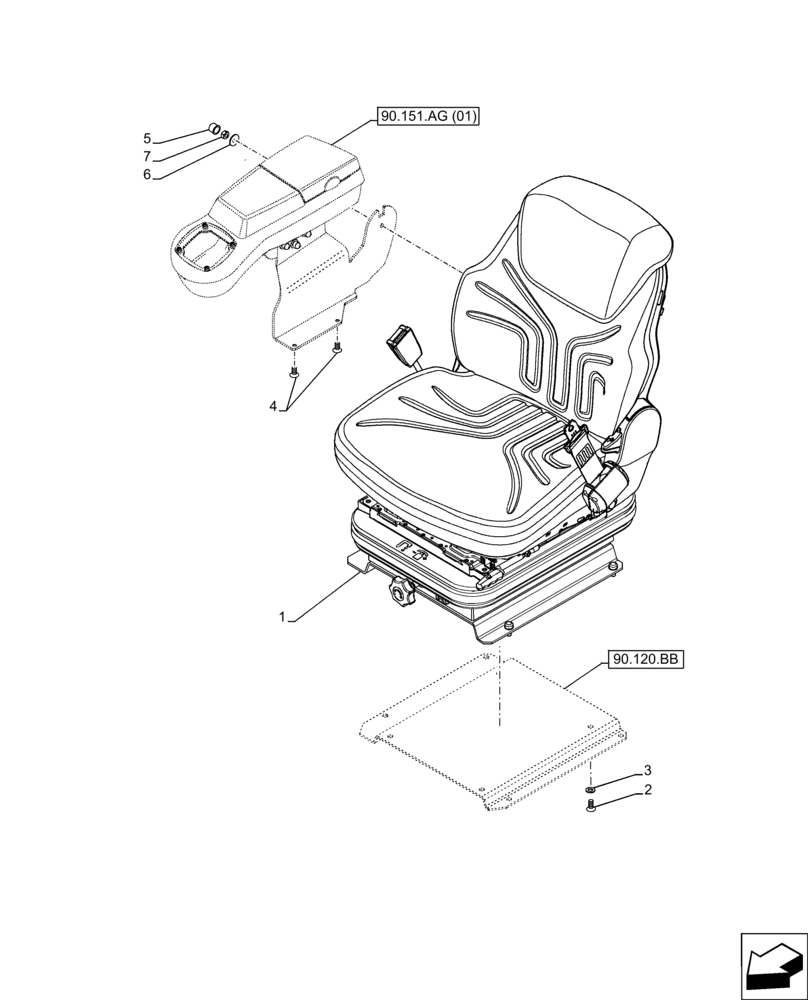

Запчасти Case IH FARMLIFT 742 (90.120.AD) - VAR - 749491 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444279

DRIVER SEAT

ASSY

1шт.

See Seat Components also in Figures 55.408.BL (01), 90.120.AC, 90.120.AE, 90.120.AF, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.BA, 90.120.BC, 90.120.BH, 90.151.AD (01)

1шт.

2

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

14441924

SCREW,Hex Soc Flat Hd, M8 x 16, 8.8

2шт.

5

15811587

PROTECTION CAP,13mm x 13.5mm, Black

1шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
