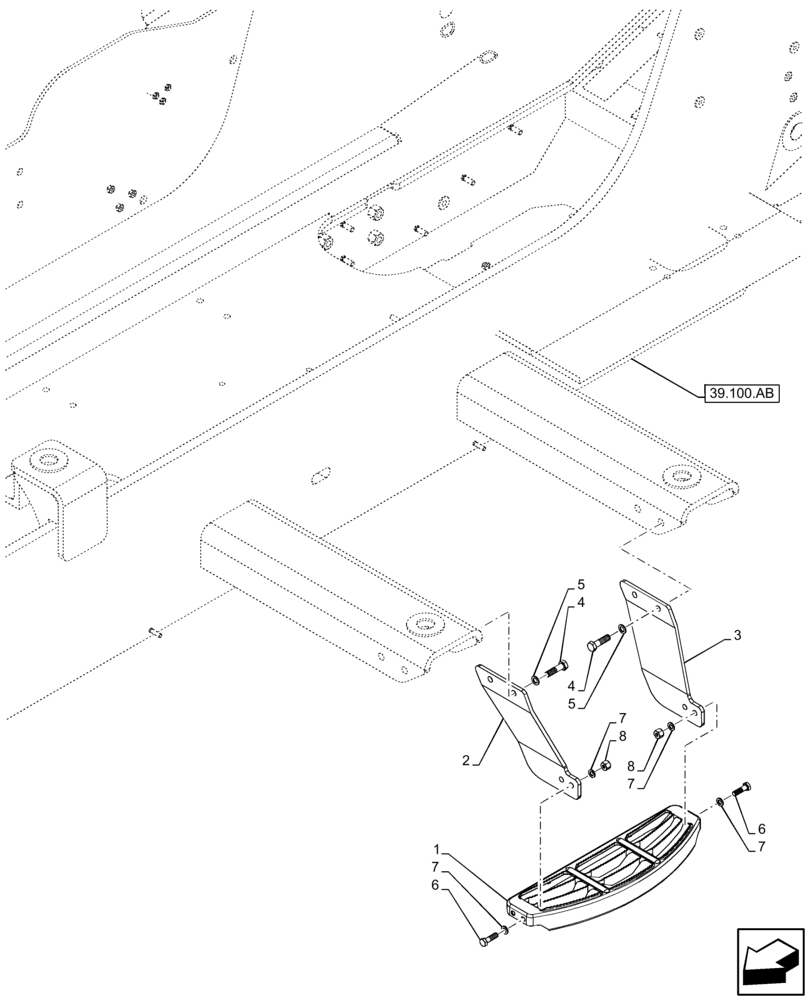

Запчасти Case IH FARMLIFT 742 (90.118.BX) - CAB, STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84197771

STEP

1шт.

2

47566082

PLATE

1шт.

3

47566069

PLATE

1шт.

4

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

5

13507421

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

6

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

7

12638631

WASHER,10.6mm ID x 18mm OD x 2mm Thk

8шт.

8

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

4шт.
