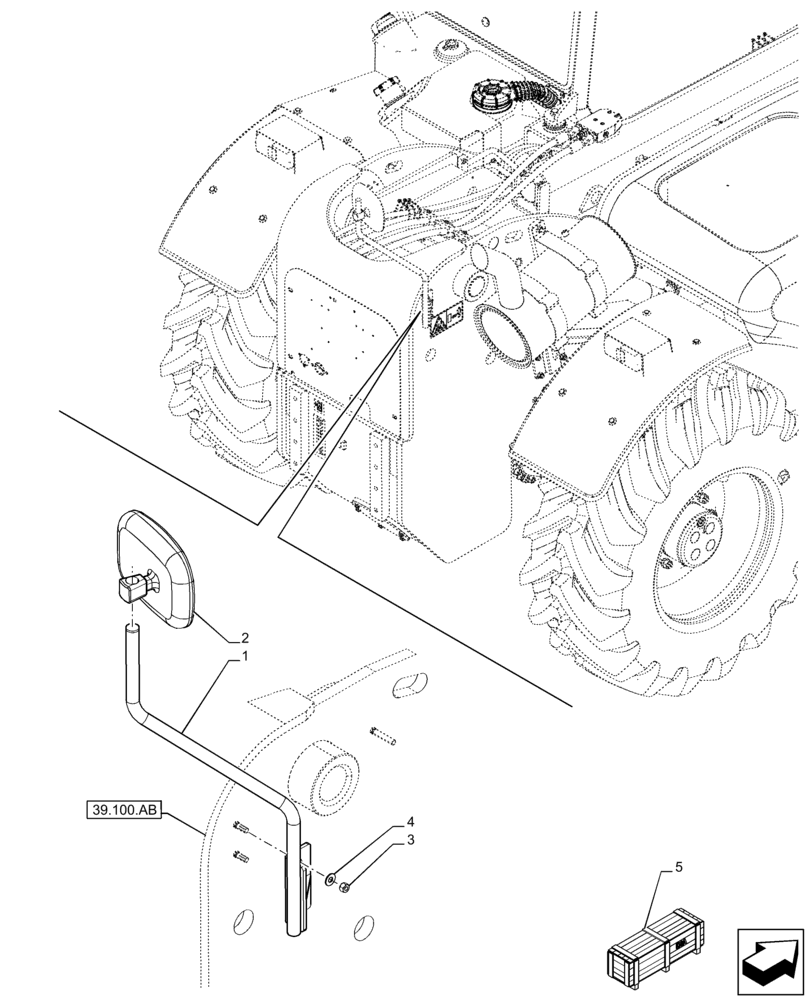

Запчасти Case IH FARMLIFT 742 (90.118.BM[04]) - VAR - 749025, 749714 - RH MIRROR, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47659340

SUPPORT

1шт.

2

84275334

MIRROR

RH, Rear

1шт.

3

68841

NUT,M8 x 1.25, Cl 8

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

47612871

CONSTRUCTION DIA

Added Mirror, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
