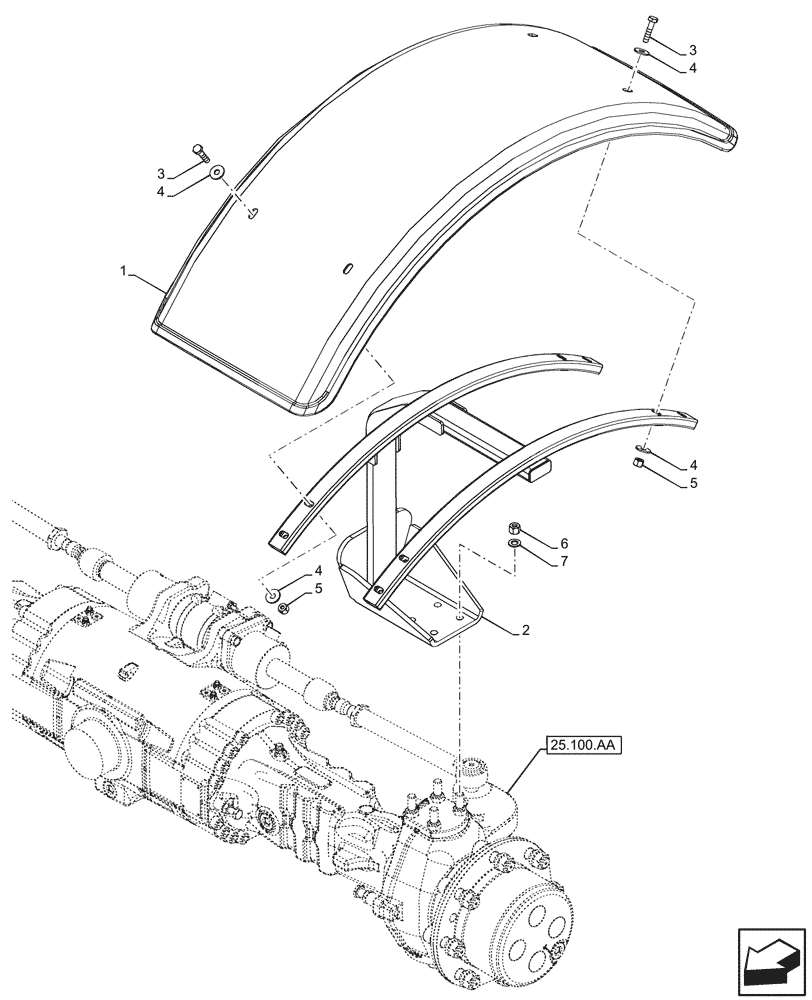

Запчасти Case IH FARMLIFT 742 (90.116.AC[04]) - VAR - 8574074 - FRONT FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84573093

FENDER

1шт.

2

47579262

SUPPORT

2шт.

3

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

4

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

5

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

4шт.

6

16105011

NUT,Hex, M12 x 1.25, Cl 8

4шт.

7

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.
