(90.102.AD) - ENGINE HOOD, GAS STRUT

Запчасти Case IH FARMLIFT 742 (90.102.AD) - ENGINE HOOD, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

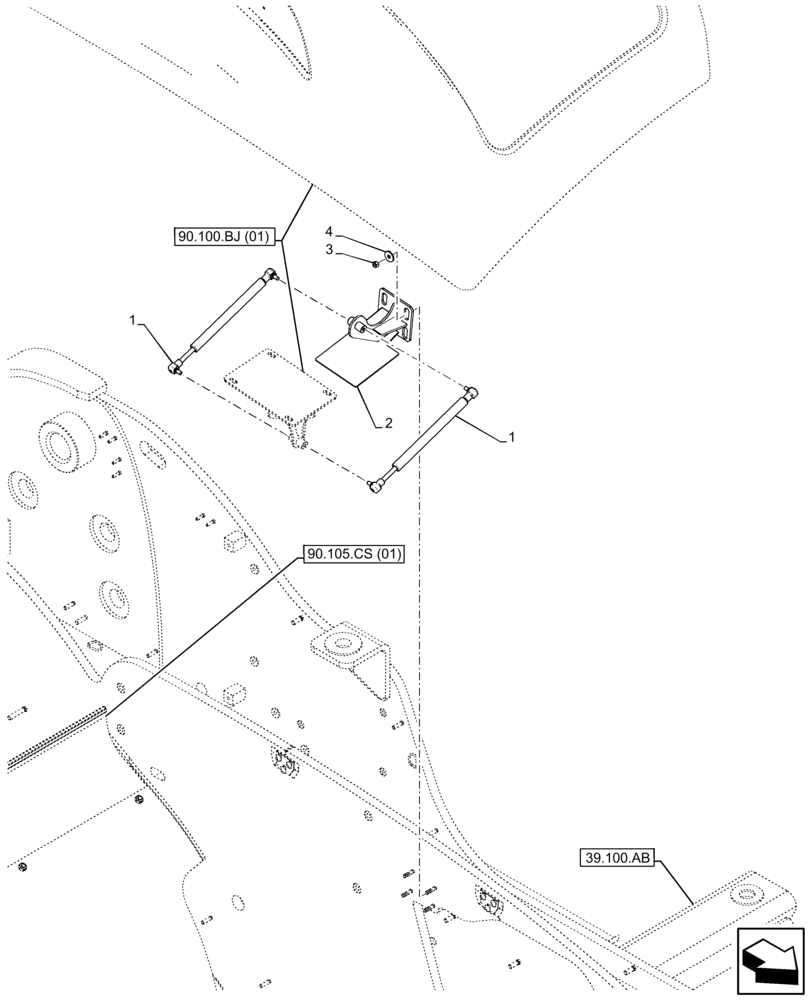

Схема запчастей Case IH FARMLIFT 742 - (90.102.AD) - ENGINE HOOD, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.cs (01)
39.100.ab
4
1
1
2
3
90.100.bj (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47572985

GAS STRUT,485mm Extended, 285mm Compressed

2шт.

2

84589276

BRACKET

1шт.

3

68841

NUT,M8 x 1.25, Cl 8

4шт.

4

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

4шт.
