Запчасти Case IH FARMLIFT 742 (88.100.84) - DIA KIT, BUCKET, COVER (88) - ACCESSORIES

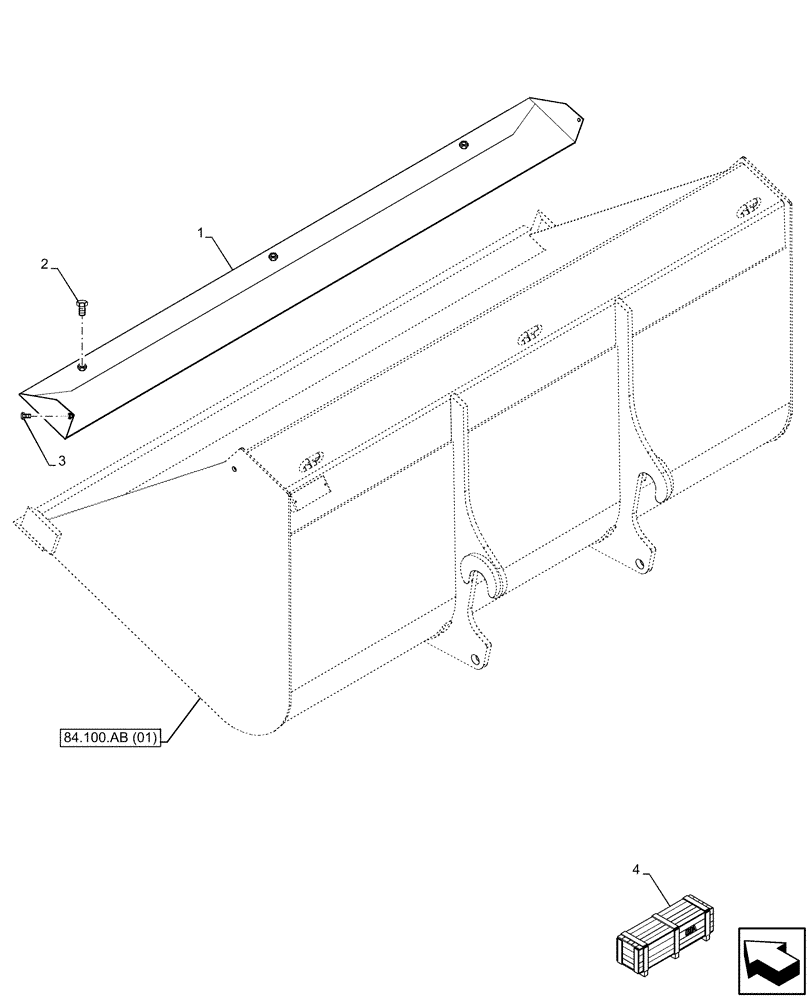

Схема запчастей Case IH FARMLIFT 742 - (88.100.84) - DIA KIT, BUCKET, COVER (88) - ACCESSORIES
4
2
84.100.ab (01)
3
1

Артикул

Название

Примечание

Количество

1

47641386

PROTECTION PLATE

1шт.

2

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

3шт.

3

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

47678086

CONSTRUCTION DIA

Bucket Protective Device, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
