(55.518.AT) - WINDSHIELD WASH RESERVOIR

Запчасти Case IH FARMLIFT 742 (55.518.AT) - WINDSHIELD WASH RESERVOIR (55) - ELECTRICAL SYSTEMS

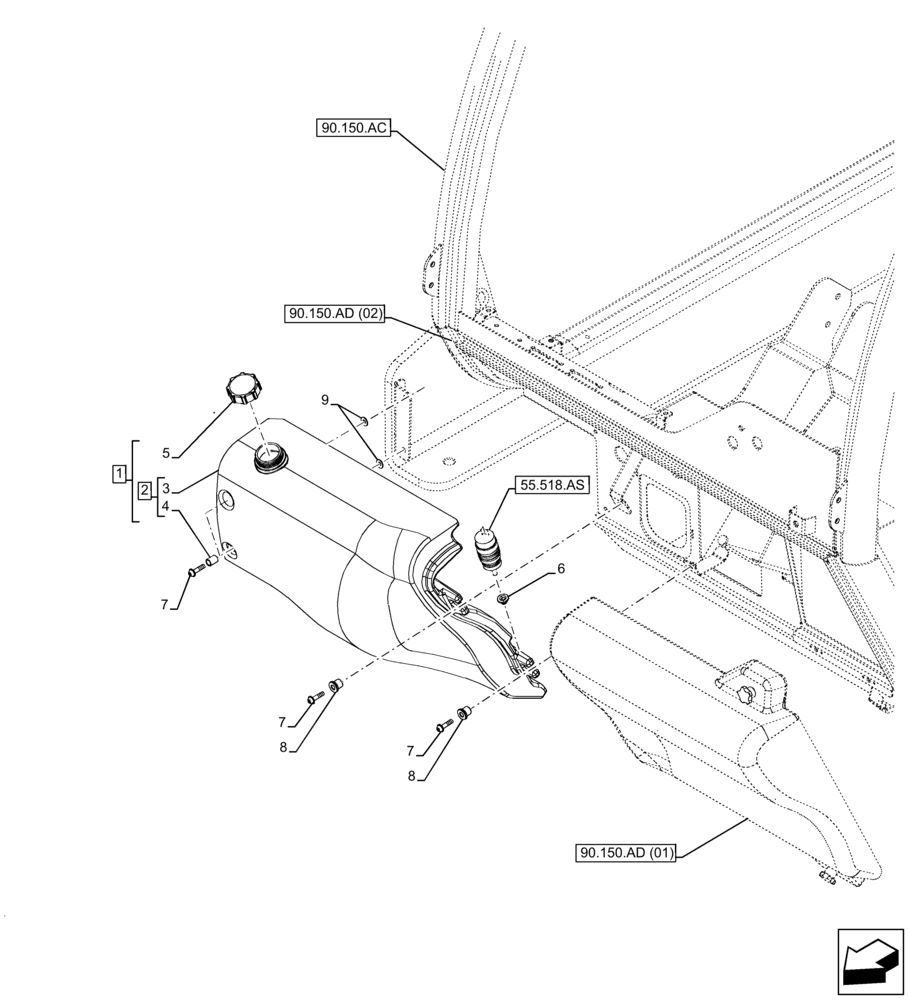

Схема запчастей Case IH FARMLIFT 742 - (55.518.AT) - WINDSHIELD WASH RESERVOIR (55) - ELECTRICAL SYSTEMS
90.150.ac
90.150.ad (02)
3
1
9
7
4
7
2
8
90.150.ad (01)
7
55.518.as
8
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84562931

RESERVOIR, WINDSHIEL

ASSY, Incl 2 - 5, Years: -30-JUL-14

1шт.

1

NSS

NOT SOLD SEPARAT

ASSY, Incl 2 - 5, Start Year: 31-JUL-14

1шт.

2

47372009

RESERVOIR, WINDSHIEL

ASSY, Incl 3, 4

1шт.

3

84554919

RESERVOIR, WINDSHIEL

1шт.

4

84562332

BUSHING

, Years: -30-JUL-14

2шт.

4

47774900

, Start Year: 31-JUL-14

2шт.

5

47403583

CUP

1шт.

6

47372044

GROMMET

1шт.

7

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

4шт.

8

84562062

BUSHING

2шт.

9

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.
