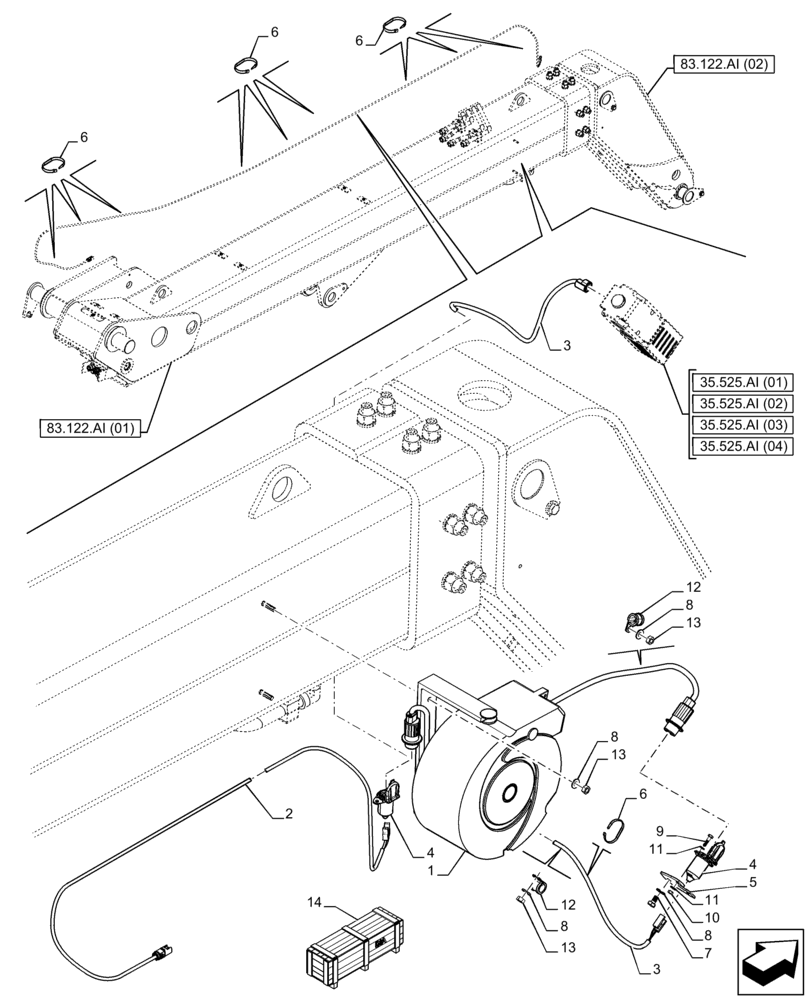

Запчасти Case IH FARMLIFT 742 (55.515.AH) - VAR - 749378, 749379, 749494, 749495 - BOOM, HARNESS (55) - ELECTRICAL SYSTEMS

1

76094498

ELECTRIC CABLE

Reel

1шт.

2

84561501

WIRE HARNESS

Chassis Harness to Reel

1шт.

3

84561497

WIRE HARNESS

Reel to 4th/5th Auxiliary Hydraulic Valve

1шт.

4

76094596

POWER SOCKET

3 Pin

2шт.

5

47628469

PLATE

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

16шт.

7

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

9

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

10

86508813

NUT,M5, Cl 8

2шт.

11

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.

12

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

2шт.

13

9706690

NUT,M8 x 1.25, Cl 8

4шт.

14

47610741

CONSTRUCTION DIA

Boom Double Auxiliary Hydraulic, For Mechanical Carrier, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

14

47610744

CONSTRUCTION DIA

Boom Double Auxiliary Hydraulic, For Hydraulic Carrier, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
