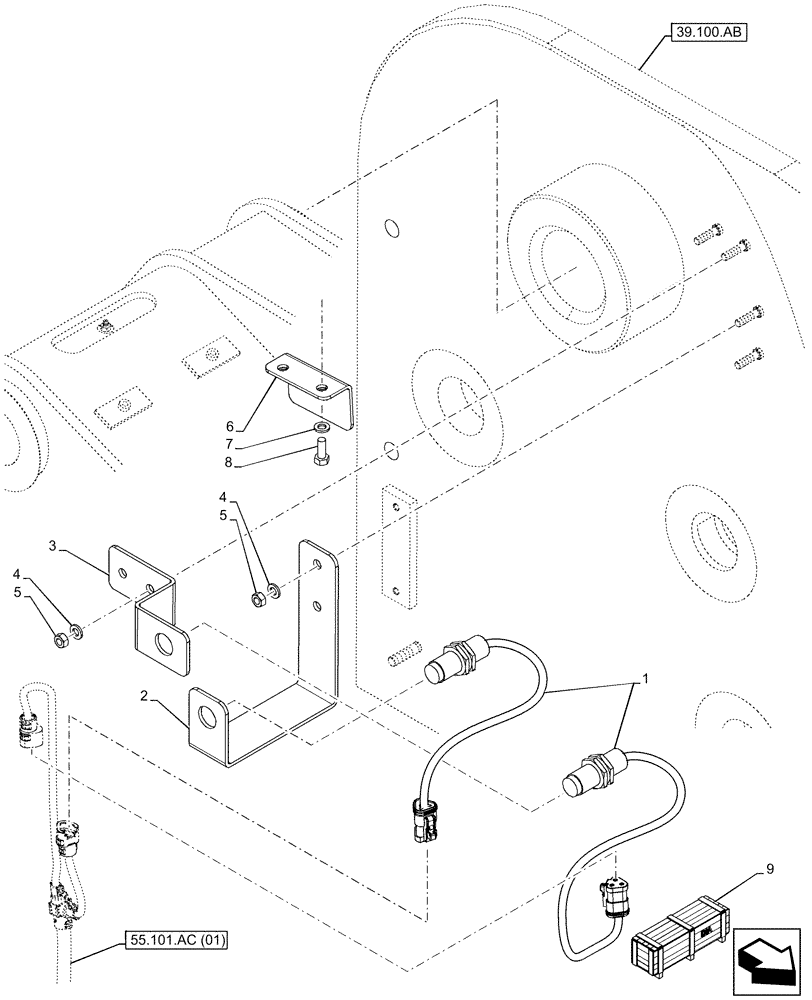

Запчасти Case IH FARMLIFT 742 (55.425.AL[01]) - VAR - 749298 - RIDE CONTROL, ARM/LIFTING DEVICE, SENSOR (55) - ELECTRICAL SYSTEMS

1

76089569

SENSOR

Proximity, Boom Position

2шт.

2

47673005

BRACKET

1шт.

3

47394996

BRACKET

1шт.

4

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

6

47673008

BRACKET

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

9

47610746

CONSTRUCTION DIA

Smooth Ride Control, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, FARMLIFT 735, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM7.35 DA, FARMLIFT 735 DA, LM6.32 NRC, LM7.35 NRC, LM9.35 NRC

1шт.

9

47613431

CONSTRUCTION DIA

Smooth Ride Control, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.35, FARMLIFT 635, LM7.42, LM7.42 FLEX, FARMLIFT 742, LM6.35 NRC, LM7.42 NRC

1шт.
