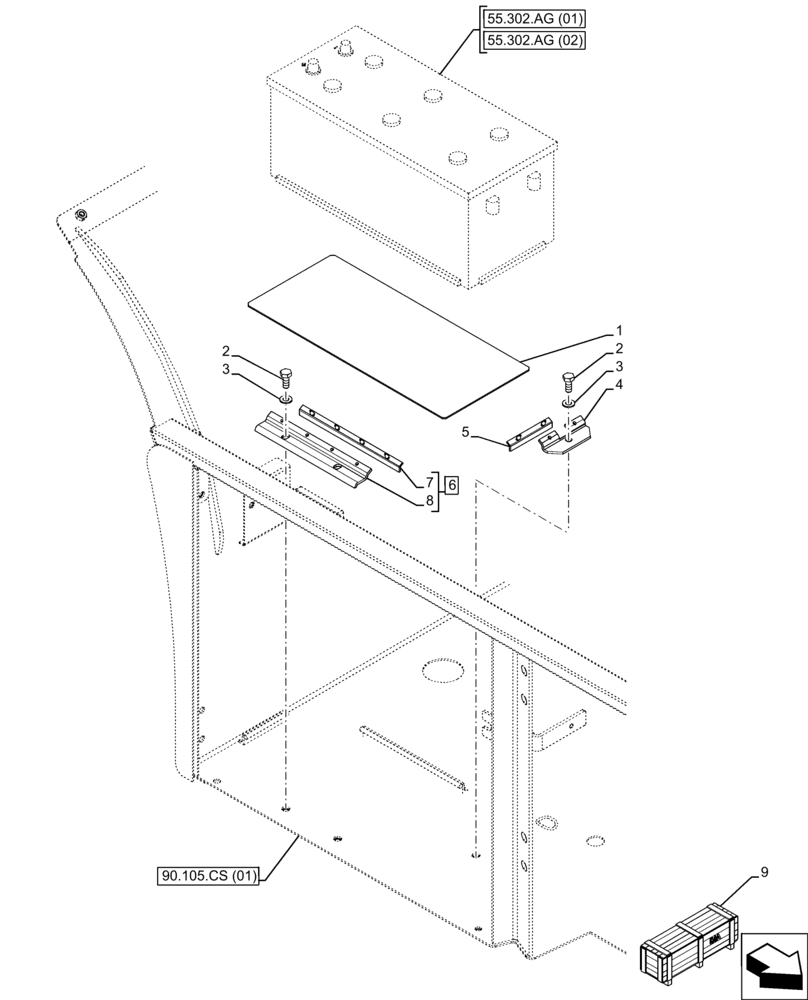

Запчасти Case IH FARMLIFT 742 (55.302.AK) - VAR - 702005, 749079 - BATTERY SUPPORT (55) - ELECTRICAL SYSTEMS

1

79010787

PLATE

Bottom

1шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

3

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

4

85807887

PLATE

Side

1шт.

5

85807892

RUBBER PAD

1шт.

6

71432216

BRACKET

ASSY, Incl 7, 8

1шт.

7

79084346

BLOCK

1шт.

8

NSS

NOT SOLD SEPARAT

Bracket, Incl in 6

1шт.

9

47610415

CONSTRUCTION DIA

Cold Start, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
