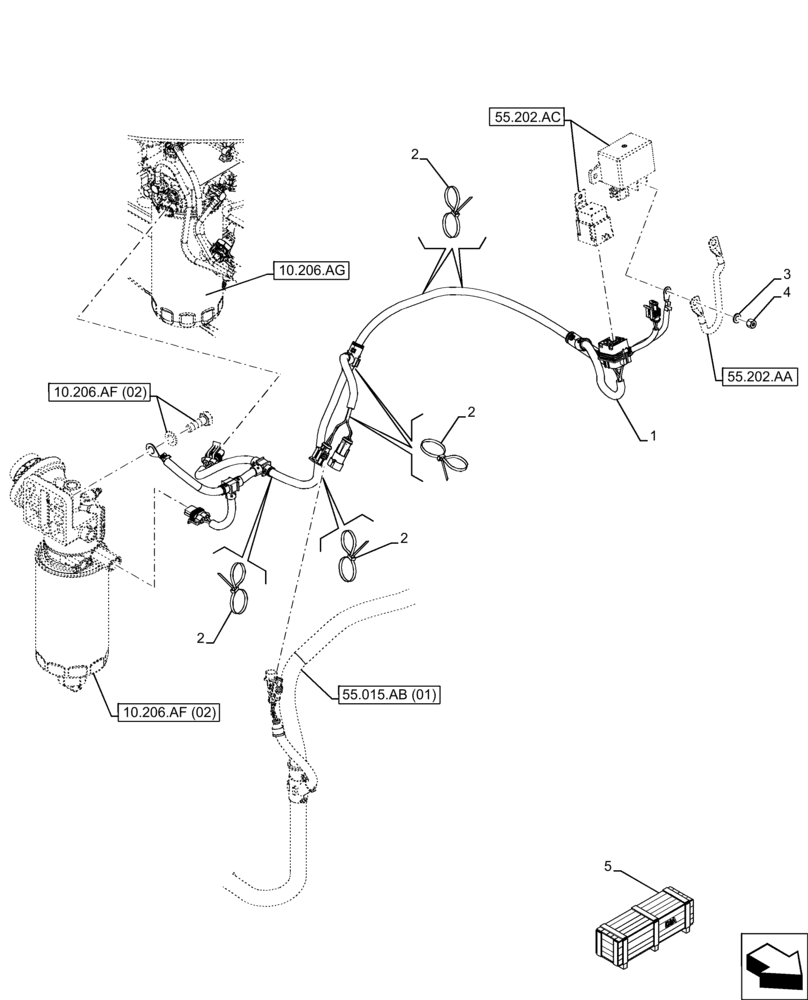

Запчасти Case IH FARMLIFT 742 (55.202.AD[01]) - VAR - 749079 - COLD START SYSTEM, HARNESS (55) - ELECTRICAL SYSTEMS

1

84554052

WIRE HARNESS

Cold Start

1шт.

2

82012869

CABLE TIE,300mm L, Nylon, Black

6шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

4

12574221

NUT,M6 x 1, Cl 10

1шт.

5

47610415

CONSTRUCTION DIA

Cold Start, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
