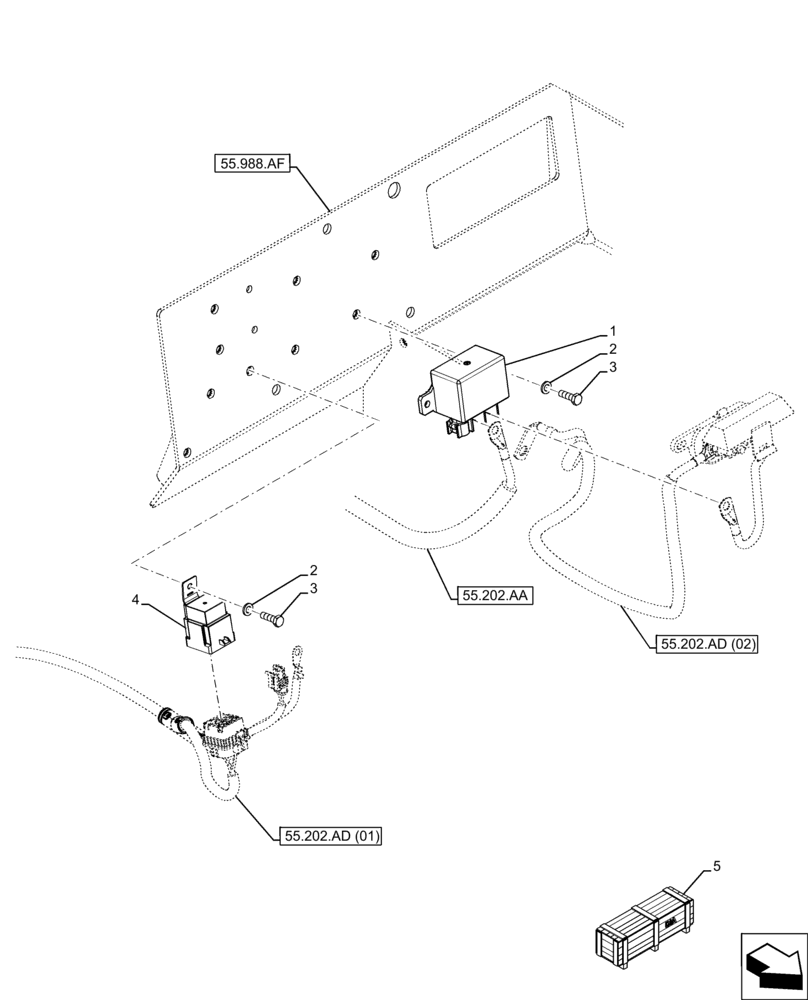

Запчасти Case IH FARMLIFT 742 (55.202.AC) - VAR - 749079 - COLD START SYSTEM, RELAY (55) - ELECTRICAL SYSTEMS

1

82022813

RELAY,12V, High Current

Cold Start

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

3

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

4

82017871

RELAY,12V, 20A

1шт.

5

47610415

CONSTRUCTION DIA

Cold Start, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
