(55.100.DP[03]) - WIRE HARNESS, COOLER, FAN

Запчасти Case IH FARMLIFT 742 (55.100.DP[03]) - WIRE HARNESS, COOLER, FAN (55) - ELECTRICAL SYSTEMS

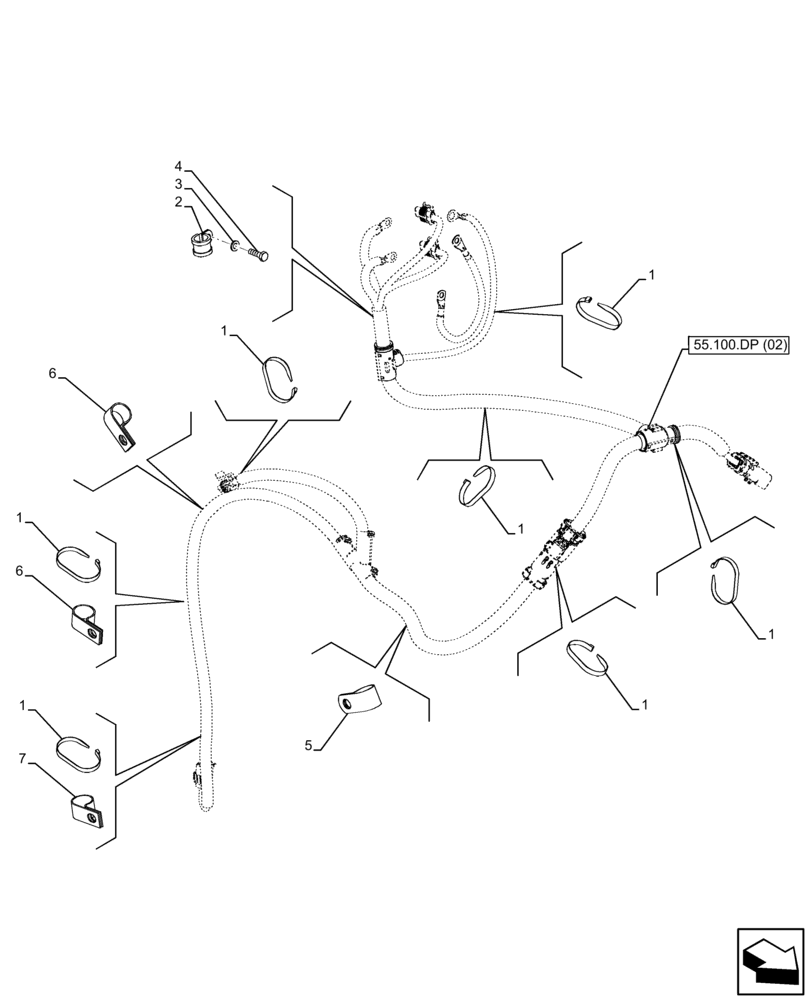

Схема запчастей Case IH FARMLIFT 742 - (55.100.DP[03]) - WIRE HARNESS, COOLER, FAN (55) - ELECTRICAL SYSTEMS
3
1
1
6
55.100.dp (02)
1
6
1
1
5
1
7
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

435437A1

CABLE TIE,3/16" x 7 1/4"

7шт.

2

10418801

CLAMP,16mm, Coat, P Type

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

4

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

5

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.
