(55.100.CQ[02]) - SUPPLY, CONNECTING, WIRE HARNESS, CAB

Запчасти Case IH FARMLIFT 742 (55.100.CQ[02]) - SUPPLY, CONNECTING, WIRE HARNESS, CAB (55) - ELECTRICAL SYSTEMS

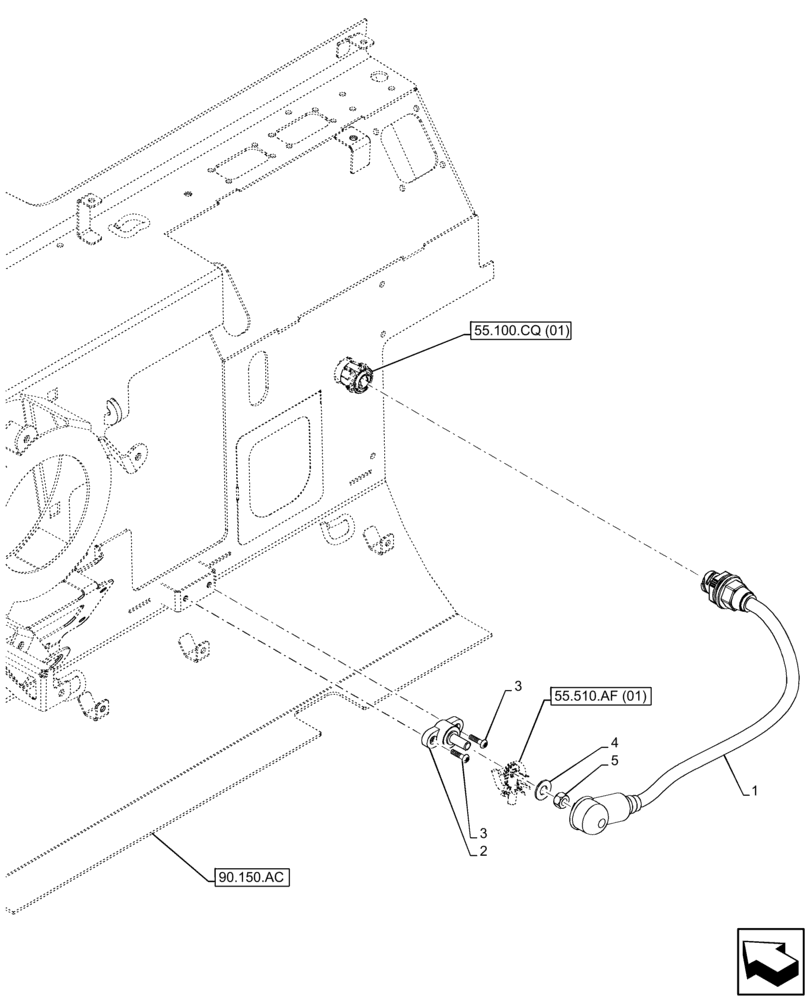

Схема запчастей Case IH FARMLIFT 742 - (55.100.CQ[02]) - SUPPLY, CONNECTING, WIRE HARNESS, CAB (55) - ELECTRICAL SYSTEMS
55.510.af (01)
4
5
3
55.100.cq (01)
2
3
90.150.ac
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84563614

WIRE HARNESS

From PDU to Cab Interface

1шт.

2

87568914

JUNCTION BLOCK

1шт.

3

13297817

SCREW,Pozidriv Flat Hd, M4 x 20mm, Cl 5.8

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.
