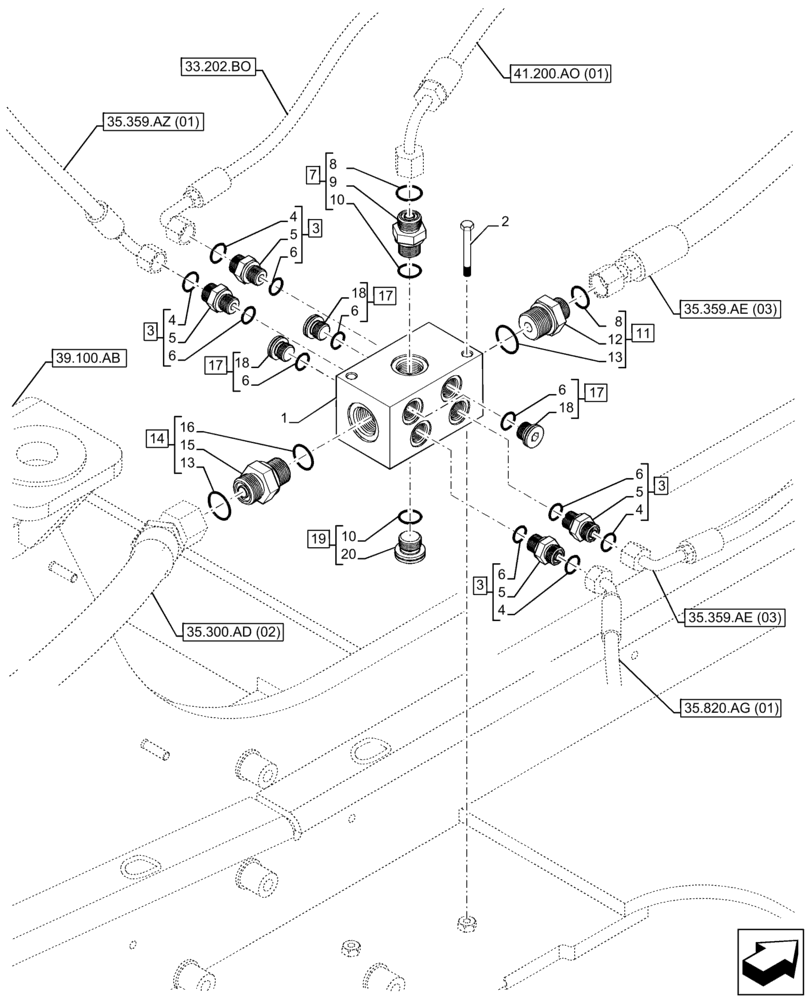

Запчасти Case IH FARMLIFT 742 (41.200.CN) - MANIFOLD VALVE, RETURN (41) - STEERING

1

84552284

HYDRAULIC MANIFOLD

Return Collector

1шт.

2

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 4 - 6

4шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

4шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

8шт.

7

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 8 - 10

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

10

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

11

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

ASSY, Incl 8, 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

14

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 13, 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

86598045

PLUG,M16 x 1.5

ASSY, Incl 6, 18

4шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 17

4шт.

19

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

ASSY, Incl 10, 20

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 19

1шт.
