Запчасти Case IH FARMLIFT 742 (35.820.AJ[02A]) - VAR - 749249 - REVERSIBLE FAN, VALVE, COMPONENTS - BEGIN DATE 29-JUN-2015 (35) - HYDRAULIC SYSTEMS

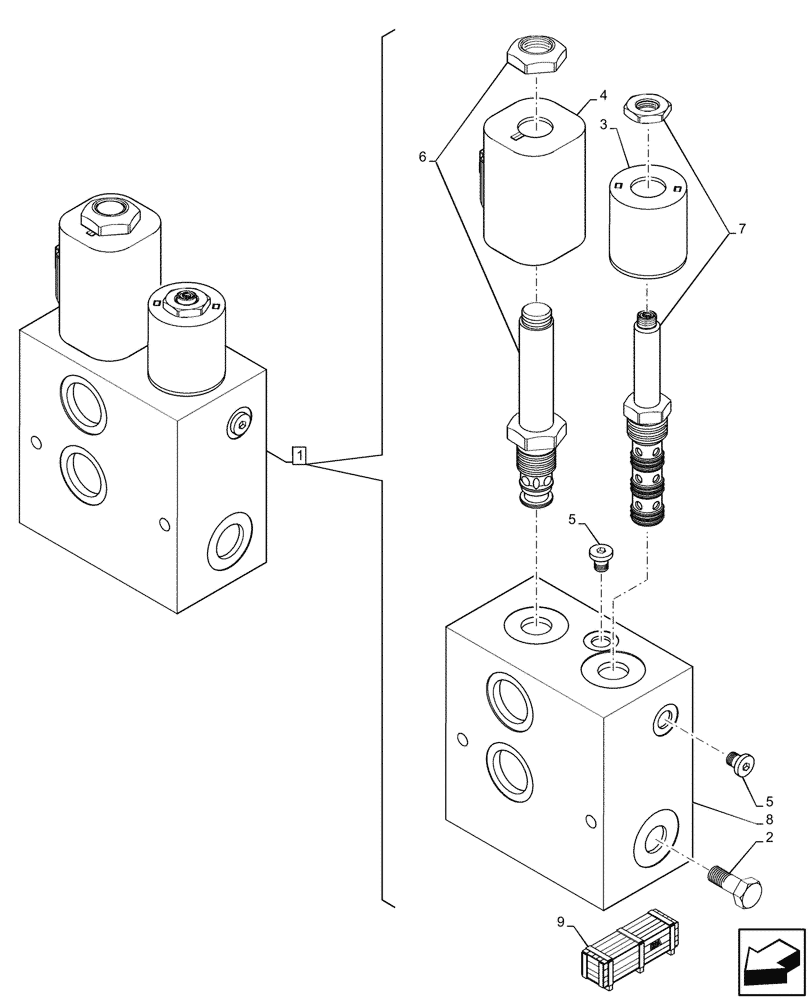

Схема запчастей Case IH FARMLIFT 742 - (35.820.AJ[02A]) - VAR - 749249 - REVERSIBLE FAN, VALVE, COMPONENTS - BEGIN DATE 29-JUN-2015 (35) - HYDRAULIC SYSTEMS
6
3
2
1
5
4
9
7
5
8

Артикул

Название

Примечание

Количество

1

84552793

VALVE

ASSY, Incl 2 - 8

1шт.

2

47610058

CHECK VALVE

1шт.

3

47610059

COIL

1шт.

4

47610060

COIL

1шт.

5

47610061

CUP PLUG

2шт.

6

47610062

VALVE

1шт.

7

47610063

VALVE

1шт.

8

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

9

47936028

CONSTRUCTION DIA

Reversible Cooling Fan, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA,

1шт.

Выбрано товаров: 11
