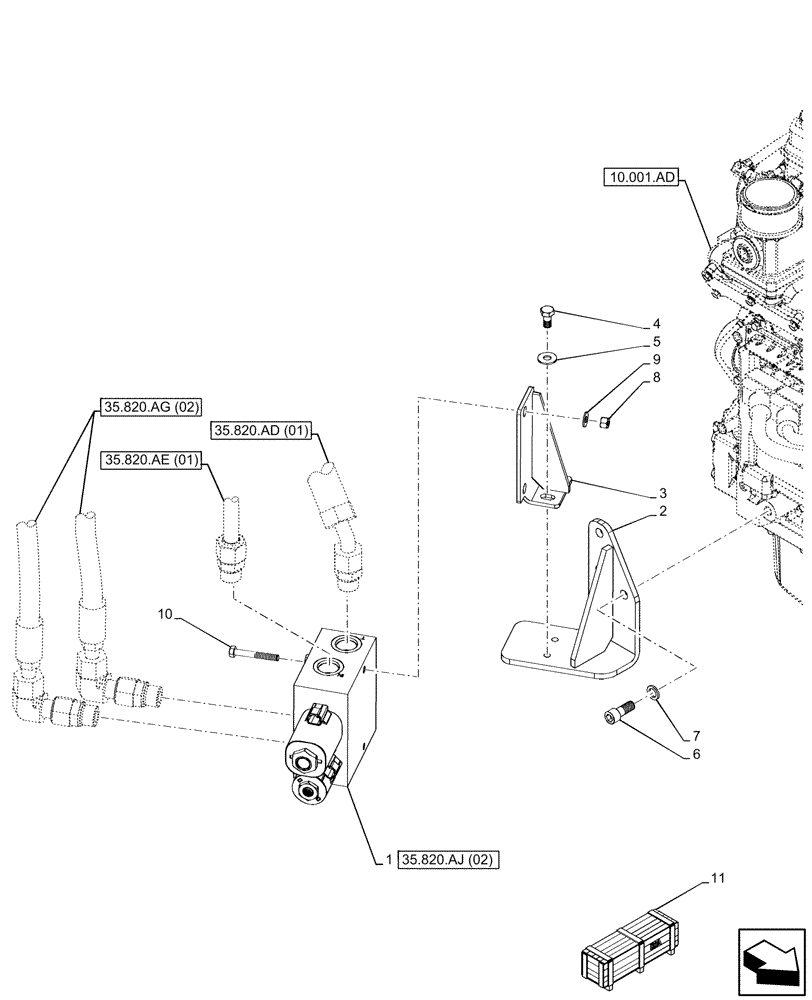

Запчасти Case IH FARMLIFT 742 (35.820.AJ[01]) - VAR - 749249 - REVERSIBLE FAN, VALVE - END DATE 28-JUN-2015 (35) - HYDRAULIC SYSTEMS

1

84552793

VALVE

ASSY

1шт.

2

47465191

BRACKET

1шт.

3

47465210

BRACKET

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

6

14422031

HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

7

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

3шт.

8

412250

NUT,M8 x 1.25, Cl 8

2шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

86639040

BOLT,Hex, M8 x 100mm, Cl 10.9, Full Thd

2шт.

11

47610922

CONSTRUCTION DIA

Reversible Cooling Fan, Incl 1, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
