Запчасти Case IH FARMLIFT 742 (35.820.AE[01]) - VAR - 749249 - REVERSIBLE FAN, HYDRAULIC LINE, PUMP (35) - HYDRAULIC SYSTEMS

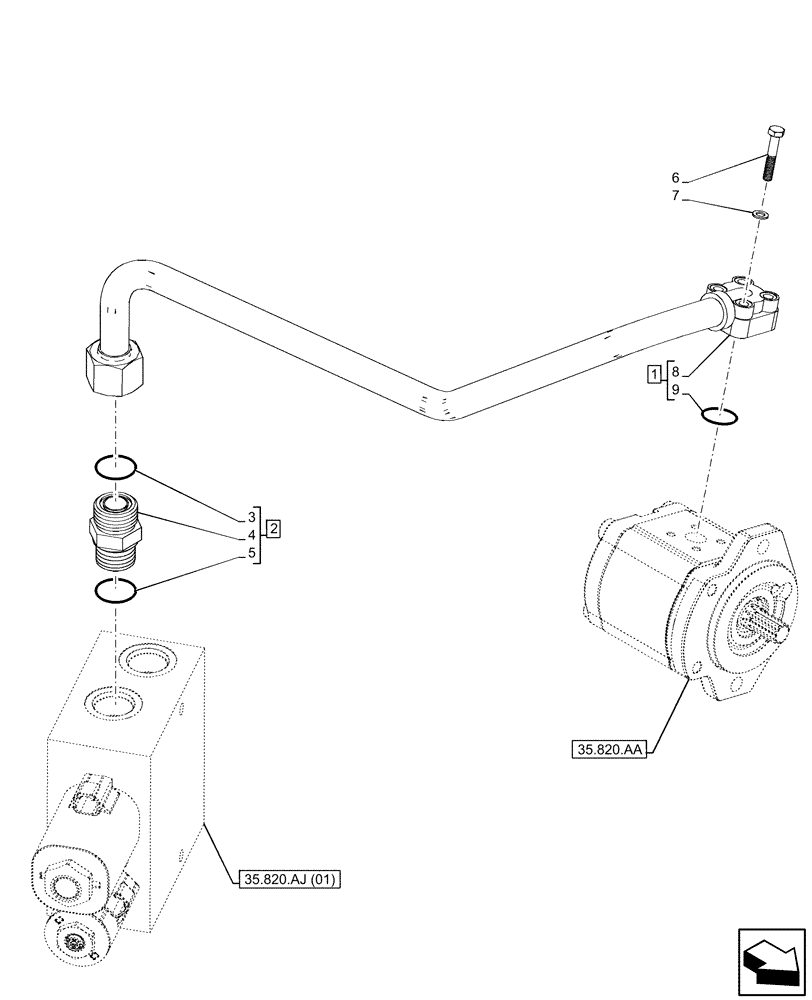

Схема запчастей Case IH FARMLIFT 742 - (35.820.AE[01]) - VAR - 749249 - REVERSIBLE FAN, HYDRAULIC LINE, PUMP (35) - HYDRAULIC SYSTEMS
35.820.aa
8
7
1
4
2
3
5
6
9
35.820.aj (01)

Артикул

Название

Примечание

Количество

1

47465188

HYD TUBE

Outlet Line, Pump to Reverse Valve Port IN, ASSY, Incl 8, 9

1шт.

2

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 3 - 5

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

4шт.

7

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

8

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

9

71484895

O-RING

1шт.

Выбрано товаров: 9
