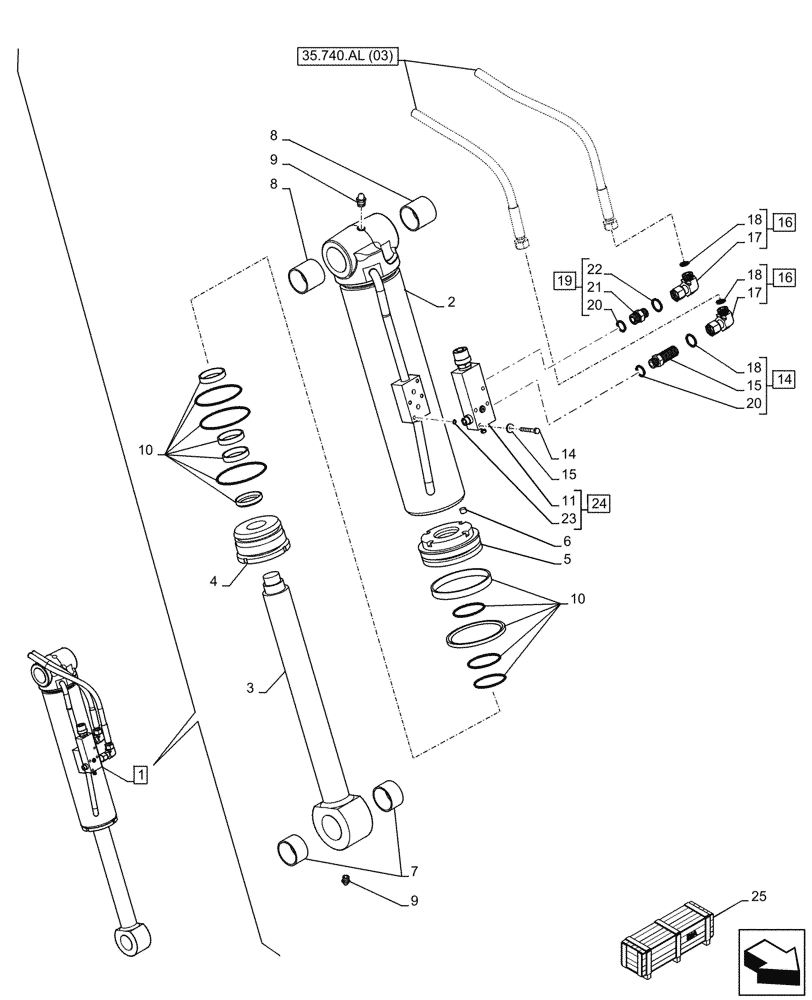

Запчасти Case IH FARMLIFT 742 (35.740.AN[02]) - TILT CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84547700

CYLINDER

ASSY, Incl 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

47576234

PISTON ROD

1шт.

4

47576231

GUIDE

1шт.

5

47576229

PISTON

1шт.

6

87567435

SET SCREW

1шт.

7

47576227

BUSHING

2шт.

8

47576220

BUSHING

2шт.

9

87626869

LUBE NIPPLE

2шт.

10

47576244

SEAL KIT

1шт.

11

NSS

NOT SOLD SEPARAT

Body, Incl in 24

1шт.

12

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

13

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

14

87398567

HYD CONNECTOR

ASSY, Incl 15, 18, 20

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

ASSY, Incl 17, 18

2шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

2шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

19

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 20 - 22

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

22

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

23

84182726

SEAL KIT

1шт.

24

87311738

CHECK VALVE

ASSY, Incl 11, 23

1шт.

25

47871050

CONSTRUCTION DIA

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, , LM7.35 NRC

1шт.

25

47871051

CONSTRUCTION DIA

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

25

47871054

CONSTRUCTION DIA

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

25

47871055

DIA KIT, HARVESTER

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

25

47871057

CONSTRUCTION DIA

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

25

47871058

CONSTRUCTION DIA

Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
