(35.740.AN[01]) - TILT CYLINDER (6 - 7M)

Запчасти Case IH FARMLIFT 742 (35.740.AN[01]) - TILT CYLINDER (6 - 7M) (35) - HYDRAULIC SYSTEMS

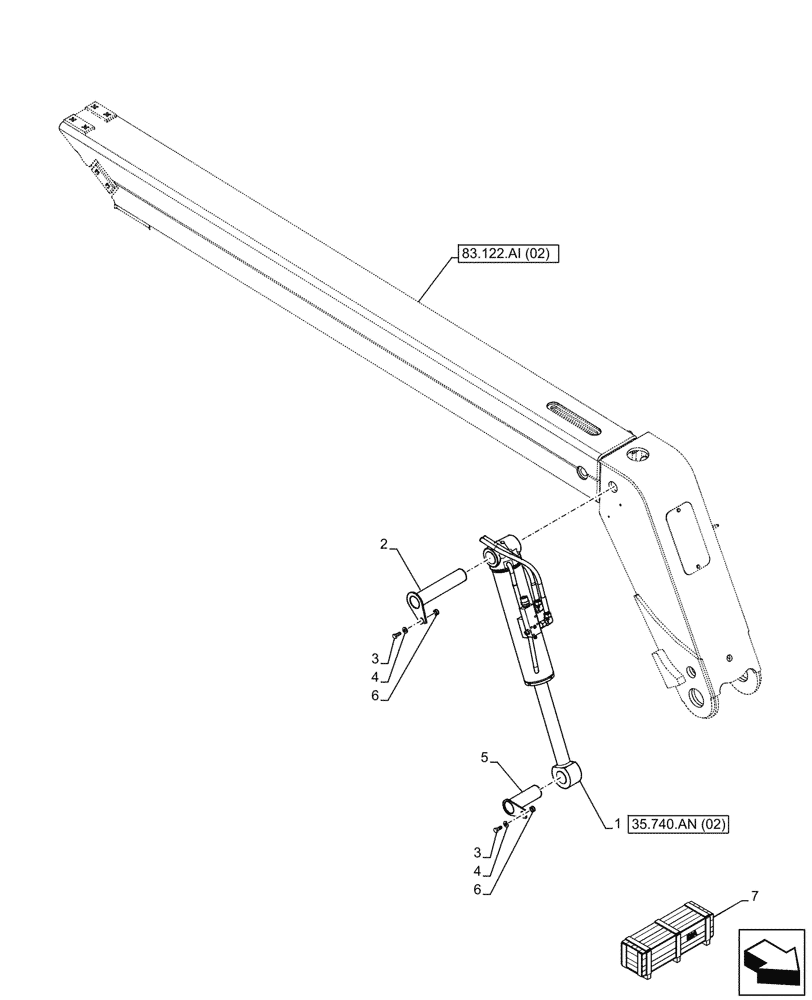

Схема запчастей Case IH FARMLIFT 742 - (35.740.AN[01]) - TILT CYLINDER (6 - 7M) (35) - HYDRAULIC SYSTEMS
3
7
4
6
35.740.an (02)
3
2
5
83.122.ai (02)
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84547700

CYLINDER

ASSY

1шт.

2

47497369

PIN

1шт.

3

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

5

47500991

PIN

1шт.

6

47487609

SPACER

2шт.

7

47871050

CONSTRUCTION DIA

Incl 1, 3 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

7

47871051

CONSTRUCTION DIA

Incl 1, 3 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

7

47871054

CONSTRUCTION DIA

Incl 1, 3 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

7

47871055

DIA KIT, HARVESTER

Incl 1, 3 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

7

47871057

CONSTRUCTION DIA

Incl 1, 3 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

7

47871058

CONSTRUCTION DIA

Incl 1, 3 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.
