(35.740.AL[01]) - TILT CYLINDER, HOSE, REAR (7 - 9M)

Запчасти Case IH FARMLIFT 742 (35.740.AL[01]) - TILT CYLINDER, HOSE, REAR (7 - 9M) (35) - HYDRAULIC SYSTEMS

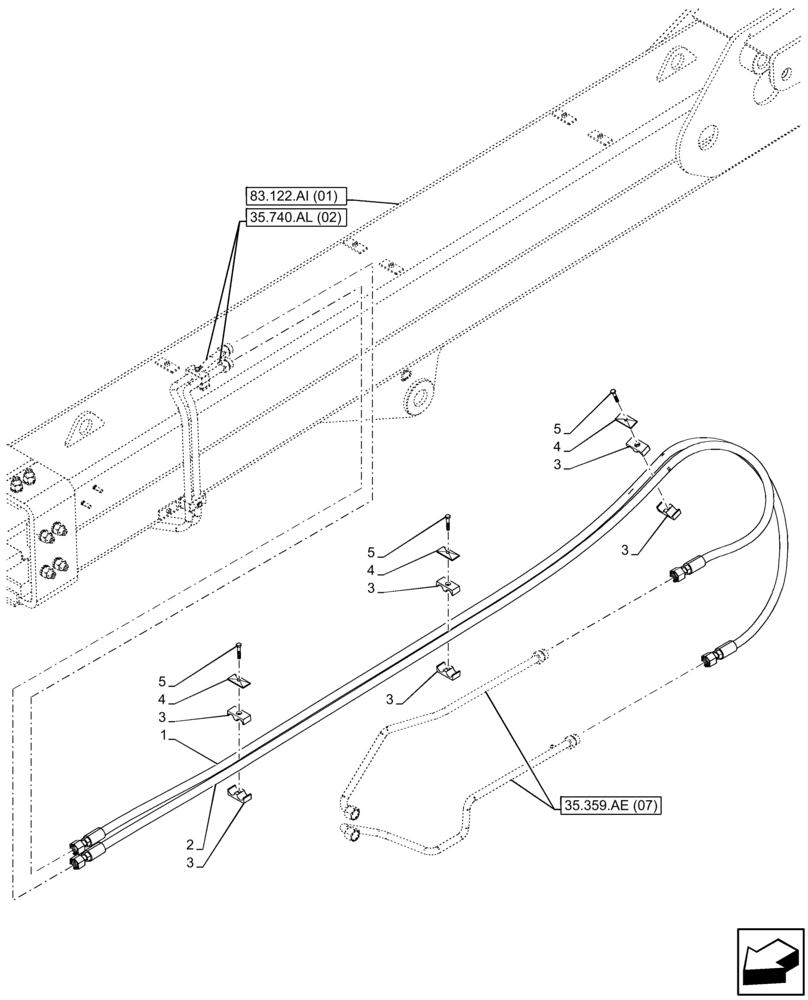

Схема запчастей Case IH FARMLIFT 742 - (35.740.AL[01]) - TILT CYLINDER, HOSE, REAR (7 - 9M) (35) - HYDRAULIC SYSTEMS
4
2
35.359.ae (07)
1
3
4
3
3
5
83.122.ai (01)
3
35.740.al (02)
5
5
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84529821

HYDRAULIC HOSE,15.88mm ID x 3590mm L, SAE 100R16

Tilt Cylinder

1шт.

2

84529825

HYDRAULIC HOSE,15.88mm ID x 3720mm L, SAE 100R16

Tilt Cylinder

1шт.

3

84547299

CLAMP

3шт.

4

84545714

COVER PLATE

3шт.

5

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

3шт.

Выбрано товаров: 5
