Запчасти Case IH FARMLIFT 742 (35.740.AI) - BOOM CYLINDER, COMPENSATOR (6 - 7M) (35) - HYDRAULIC SYSTEMS

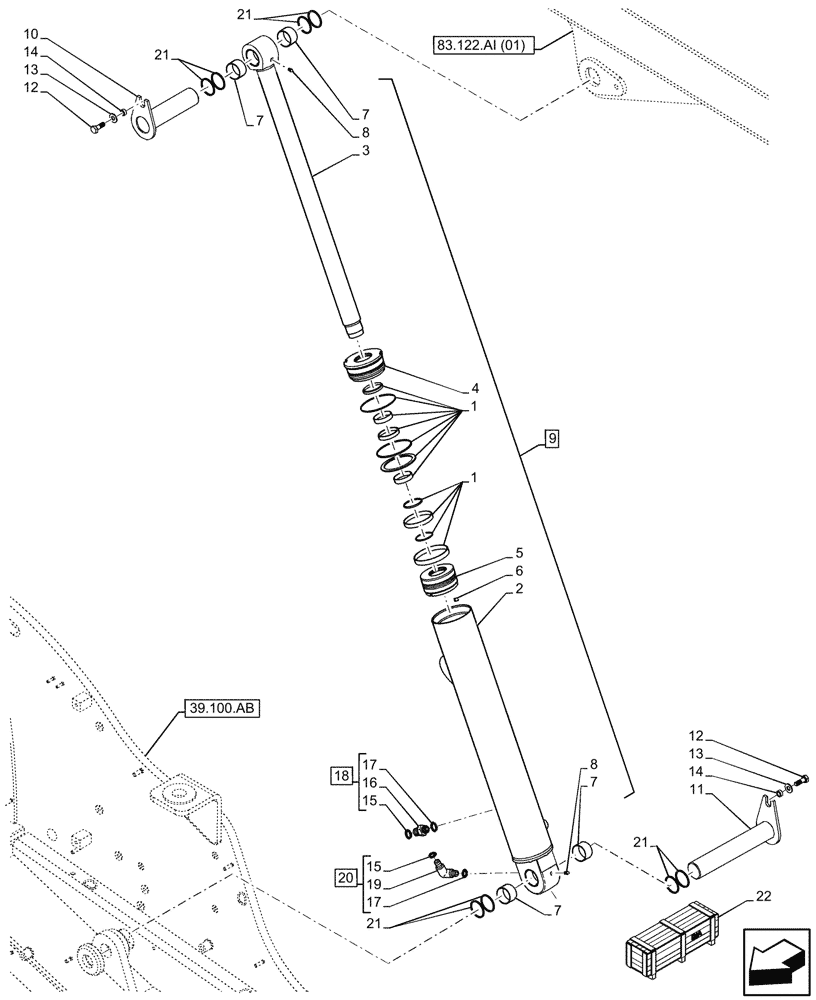

Схема запчастей Case IH FARMLIFT 742 - (35.740.AI) - BOOM CYLINDER, COMPENSATOR (6 - 7M) (35) - HYDRAULIC SYSTEMS
7
20
22
8
15
7
21
1
16
13
6
21
15
5
39.100.ab
11
17
1
14
21
7
3
7
17
83.122.ai (01)
9
12
21
13
8
10
12
18
2
4
19
14

Артикул

Название

Примечание

Количество

1

47577349

SEAL KIT

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 9

1шт.

3

47577344

PISTON ROD

1шт.

4

47577343

GUIDE

1шт.

5

47577340

PISTON

1шт.

6

47576137

SCREW

1шт.

7

47576135

BUSHING

4шт.

8

87626869

LUBE NIPPLE

2шт.

9

84547702

HYDRAULIC CYLINDER

ASSY, Incl 1 - 8, Years: -10-APR-14

1шт.

9

47612118

HYDRAULIC CYLINDER

ASSY, Incl 1 - 8, Start Year: 11-APR-14

1шт.

10

47497352

PIN

Boom Side, Serial Range: -NFKB00501

1шт.

10

47875242

PIN

Boom Side, Start Serial: NFKB00502

1шт.

11

47497361

PIN

Frame Side

1шт.

12

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

13

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

14

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

2шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

87672176

HYD CONNECTOR

ASSY, Incl 15 - 17

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

20

84390792

90 ELBOW

ASSY, Incl 15, 17, 19

1шт.

21

47476467

SHIM

8шт.

22

47871050

CONSTRUCTION DIA

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

22

47871051

CONSTRUCTION DIA

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

22

47871054

CONSTRUCTION DIA

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

22

47871055

DIA KIT, HARVESTER

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

22

47871057

CONSTRUCTION DIA

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

22

47871058

CONSTRUCTION DIA

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, FARMLIFT735, LM7.35 NRC

1шт.

Выбрано товаров: 41
