Запчасти Case IH FARMLIFT 742 (35.740.AC) - BOOM CYLINDER LINE (6 - 7M) (35) - HYDRAULIC SYSTEMS

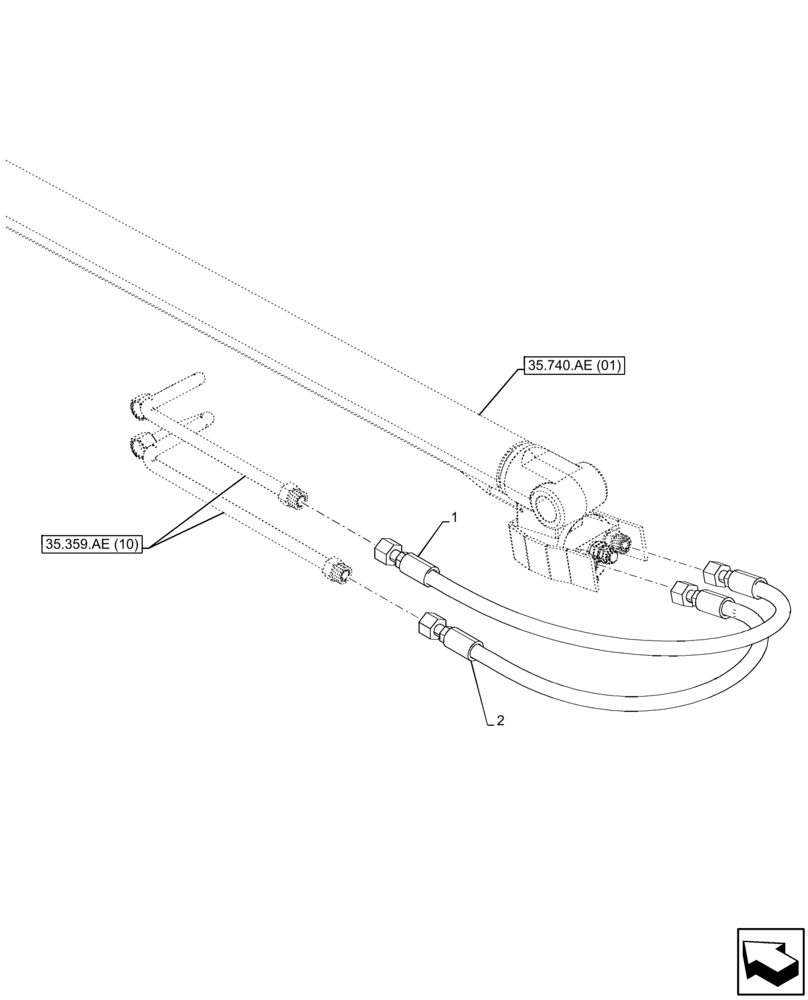

Схема запчастей Case IH FARMLIFT 742 - (35.740.AC) - BOOM CYLINDER LINE (6 - 7M) (35) - HYDRAULIC SYSTEMS
35.359.ae (10)
1
35.740.ae (01)
2

Артикул

Название

Примечание

Количество

1

84565085

HYDRAULIC HOSE,15.88mm ID x 1040mm L, SAE 100R16

Telescopic Cylinder , Serial Range: -NFKB08101

1шт.

84565085=47775626+9621483

1шт.

1

47775626

HYDRAULIC HOSE

Telescopic Cylinder , Start Serial: NFKB08102

1шт.

2

84565086

HYDRAULIC HOSE,15.88mm ID x 930mm L, SAE 100R16

Telescopic Cylinder , Serial Range: -NFKB08101

1шт.

84565086=47775628+9621483

1шт.

2

47775628

HYDRAULIC HOSE

Telescopic Cylinder, Start Serial: NFKB08102

1шт.

Выбрано товаров: 6
