Запчасти Case IH FARMLIFT 742 (35.736.AJ) - VAR - 702003 -LIFT CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

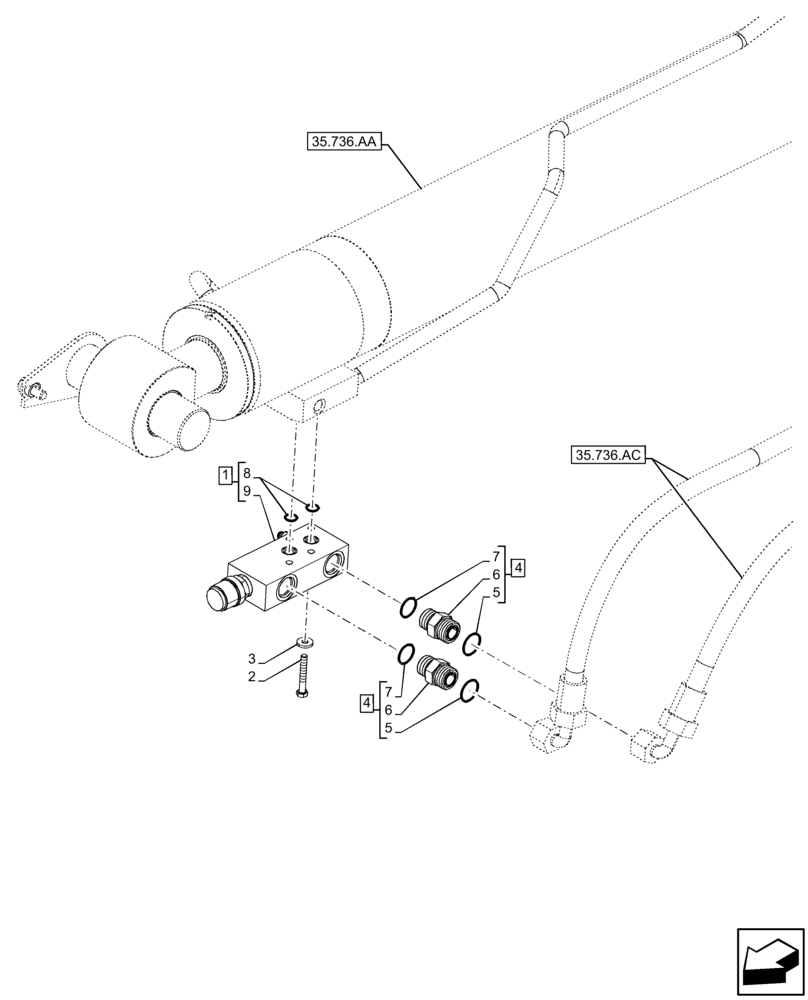

Схема запчастей Case IH FARMLIFT 742 - (35.736.AJ) - VAR - 702003 -LIFT CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
7
35.736.aa
35.736.ac
4
6
3
5
2
7
9
8
1
6
5
4

Артикул

Название

Примечание

Количество

1

76076158

HYDRAULIC VALVE

ASSY, Incl 8, 9

1шт.

2

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

3

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

4

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 5 - 7

2шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

2шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

84182726

SEAL KIT

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

Выбрано товаров: 9
