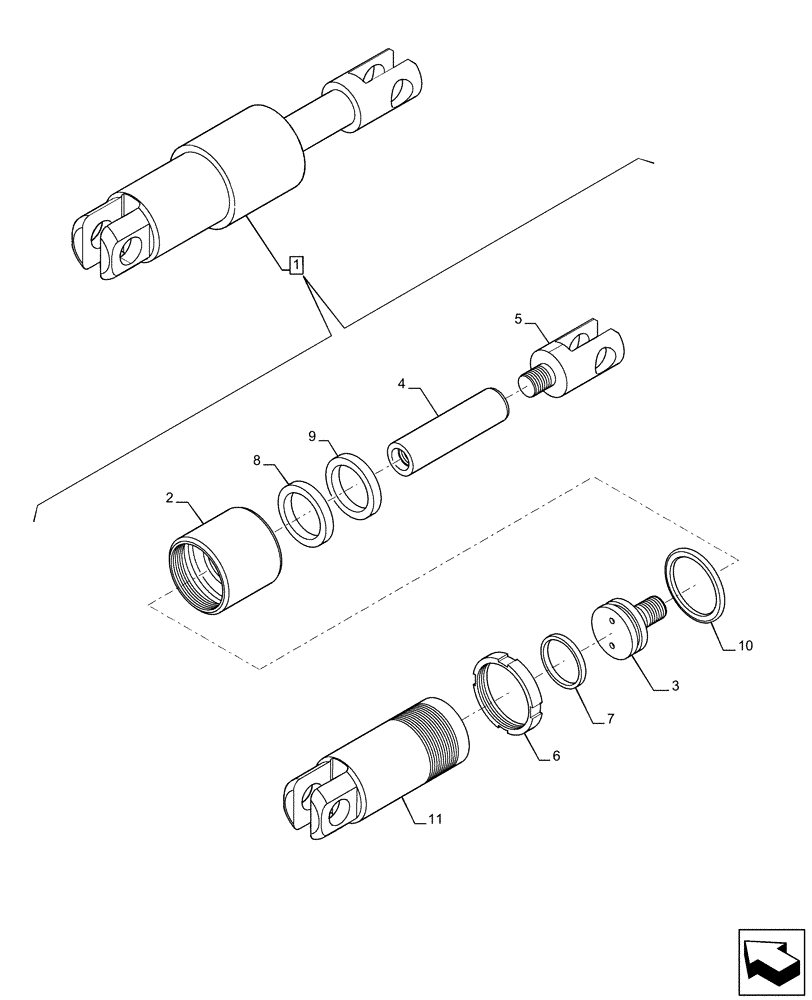

Запчасти Case IH FARMLIFT 742 (35.734.AA[06]) - VAR - 749483, 749485 - QUICK COUPLER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

4532290

CYLINDER,Double Acting, 25mm Rod, 60mm Stroke

ASSY, Incl 2- 11

1шт.

2

6559703

GLAND

1шт.

3

6559704

PISTON

1шт.

4

6559705

PISTON ROD

1шт.

5

6559706

CLEVIS

1шт.

6

6559707

LOCK NUT

1шт.

7

6559708

GASKET,29mm ID x 40mm OD x 4mm Thk

1шт.

8

6559709

GASKET,25mm ID x 33mm OD x 5.7mm Thk

1шт.

9

6559710

SHAFT SEAL

1шт.

10

6559711

O-RING,48mm ID x 3mm Width

1шт.

11

6559702

BARREL

1шт.
