Запчасти Case IH FARMLIFT 742 (35.734.AA[02]) - VAR - 749124 - QUICK COUPLER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

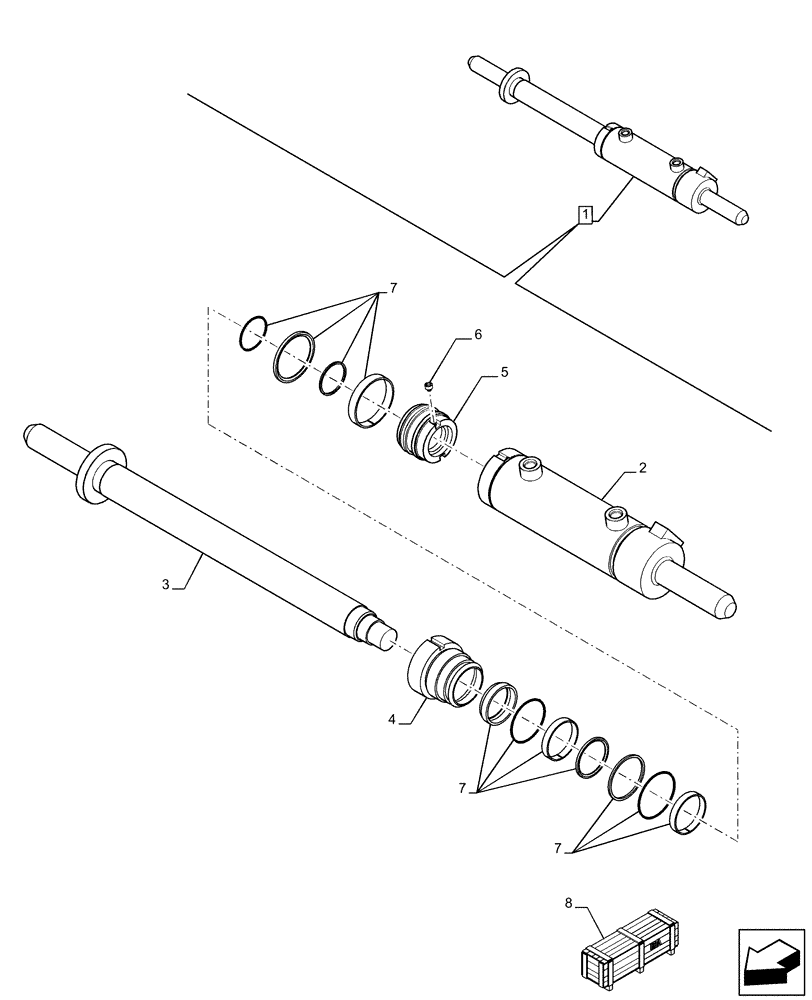

Схема запчастей Case IH FARMLIFT 742 - (35.734.AA[02]) - VAR - 749124 - QUICK COUPLER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
5
4
7
2
6
1
3
8
7
7

Артикул

Название

Примечание

Количество

1

47544218

HYDRAULIC CYLINDER

ASSY, Incl 2 - 7, Years: -10-MAY-15

1шт.

1

47804252

HYDRAULIC CYLINDER

ASSY, Incl 2 - 7, Start Year: 11-MAY-15

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

47576675

PISTON ROD

, Years: -10-MAY-15

1шт.

3

47813285

ROD

, Start Year: 11-MAY-15

1шт.

4

47576673

GUIDE

1шт.

5

47576672

PISTON

1шт.

6

87568682

LOCK SCREW

1шт.

7

47576680

SEAL KIT

1шт.

8

47610752

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 11
