Запчасти Case IH FARMLIFT 742 (35.701.AA) - VAR - 749298 - RIDE CONTROL, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

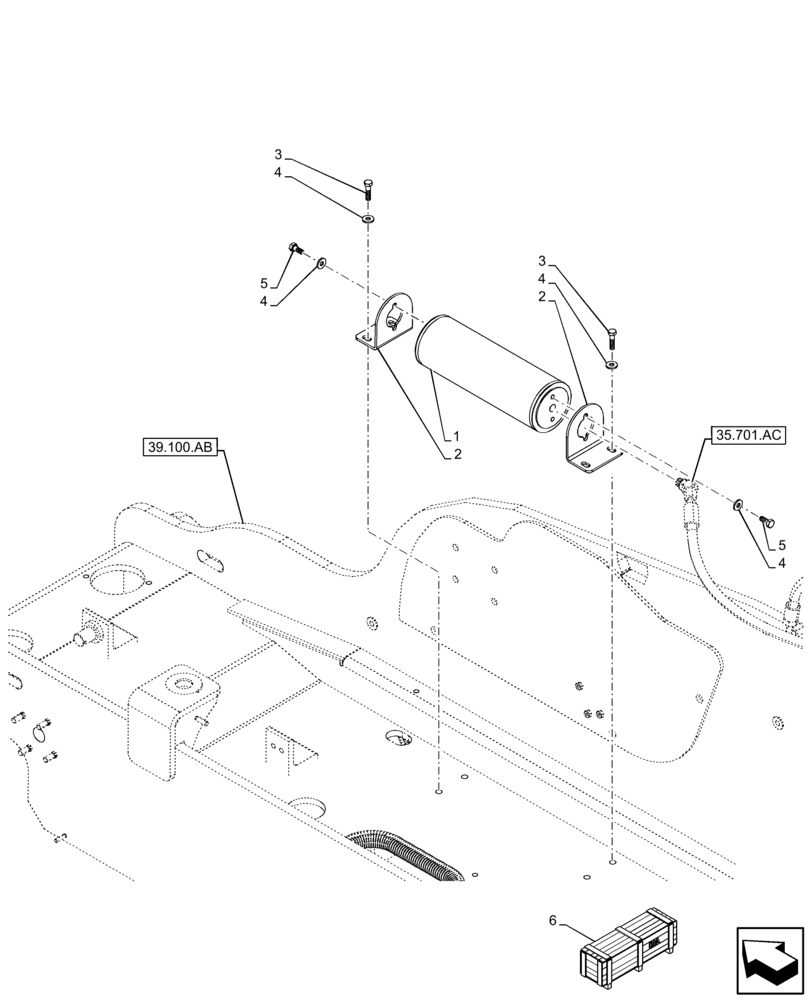

Схема запчастей Case IH FARMLIFT 742 - (35.701.AA) - VAR - 749298 - RIDE CONTROL, ACCUMULATOR (35) - HYDRAULIC SYSTEMS
35.701.ac
5
39.100.ab
2
5
1
2
4
6
4
3
4
3
4

Артикул

Название

Примечание

Количество

1

87358818

ACCUMULATOR,2L

1шт.

2

47390690

BRACKET

2шт.

3

15214721

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

4шт.

4

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

5

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

6

47610746

CONSTRUCTION DIA

Smooth Ride Control, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, FARMLIFT 735, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM7.35 DA, FARMLIFT 735 DA, LM6.32 NRC, LM7.35 NRC, LM9.35 NRC

1шт.

6

47613431

CONSTRUCTION DIA

Smooth Ride Control, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.35, FARMLIFT 635, LM7.42, LM7.42 FLEX, FARMLIFT 742, LM6.35 NRC, LM7.42 NRC

1шт.

Выбрано товаров: 11
