Запчасти Case IH FARMLIFT 742 (35.525.AD[01]) - VAR - 749124 - QUICK COUPLER, VALVE, LINE (6 - 7M) (35) - HYDRAULIC SYSTEMS

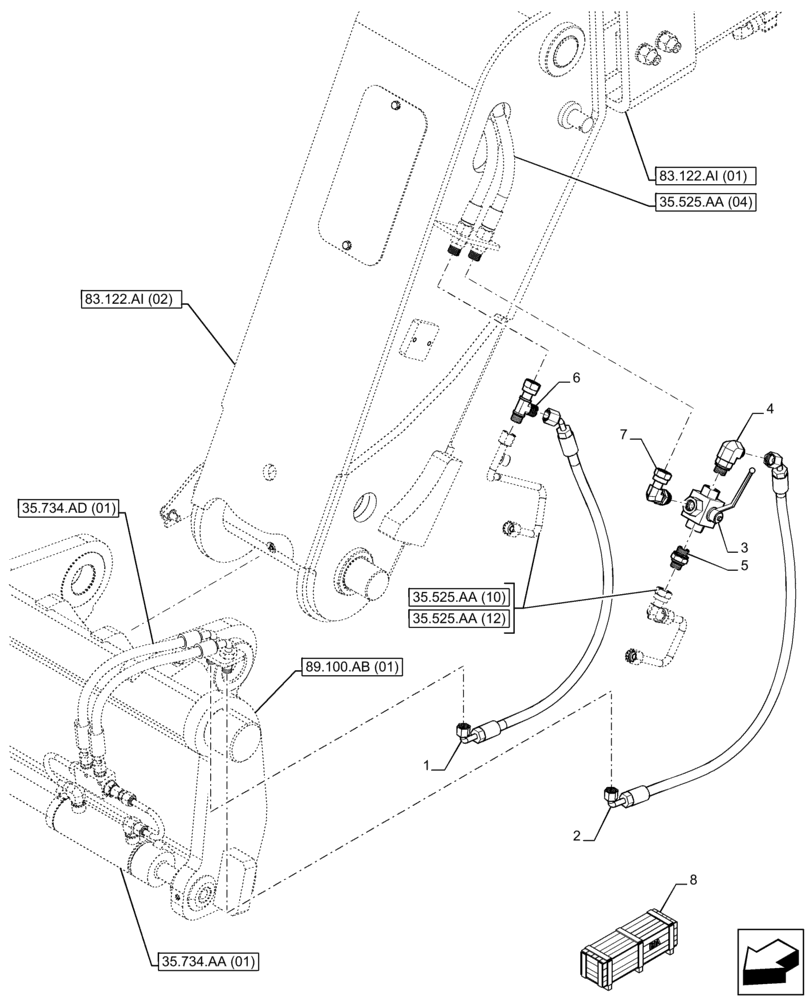

Схема запчастей Case IH FARMLIFT 742 - (35.525.AD[01]) - VAR - 749124 - QUICK COUPLER, VALVE, LINE (6 - 7M) (35) - HYDRAULIC SYSTEMS
5
35.525.aa (12)
6
35.734.ad (01)
2
1
3
35.525.aa (10)
35.525.aa (04)
35.734.aa (01)
8
7
83.122.ai (02)
83.122.ai (01)
89.100.ab (01)
4

Артикул

Название

Примечание

Количество

1

47369933

HOSE,9.53mm ID x 850mm L, SAE 100R16

Boom to Carrier

1шт.

2

47365783

HOSE,9.53mm ID x 980mm L, SAE 100R16

Boom to Carrier

1шт.

3

87734695

VANEUM GAUGE

Hand Lever

1шт.

4

87725875

FITTING

1шт.

5

87552188

FITTING

1шт.

6

87739147

TEE,3/4"-16 M x 13/16"-16 M x 13/16"-16 F

1шт.

7

87739146

FITTING,1/2"-14 Gas x 13/16"-16

1шт.

8

47610752

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 9
