Запчасти Case IH FARMLIFT 742 (35.525.AA[09]) - VAR - 749494 - AUXILIARY HYDRAULIC, LINE, FRONT (35) - HYDRAULIC SYSTEMS

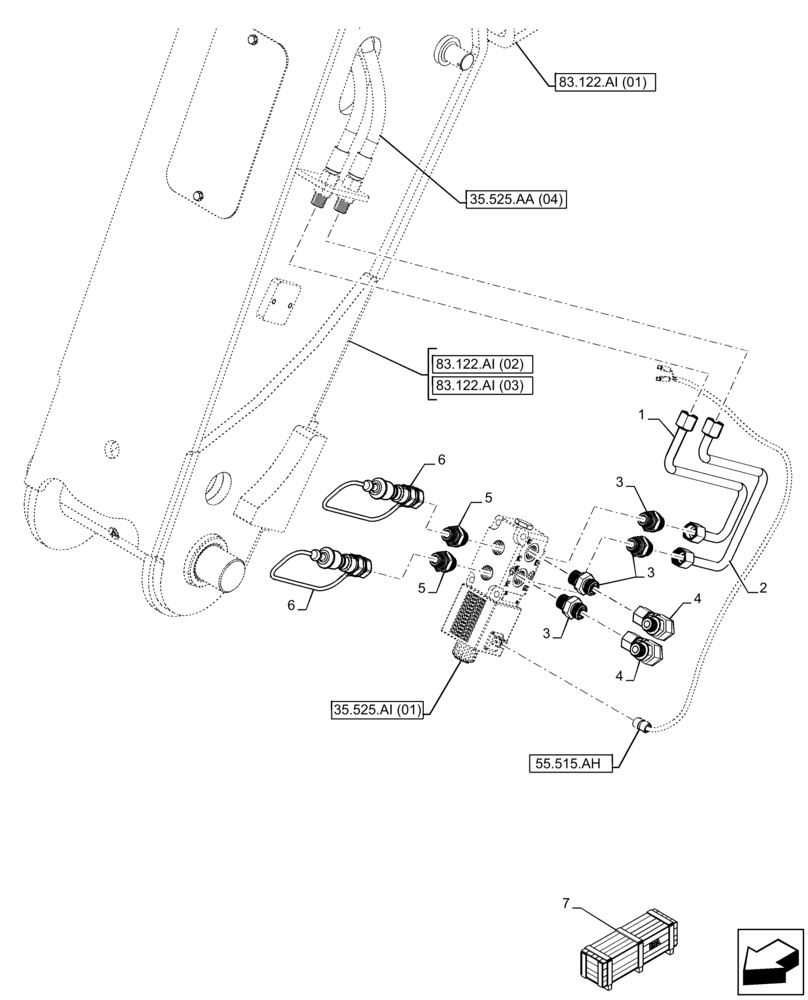

Схема запчастей Case IH FARMLIFT 742 - (35.525.AA[09]) - VAR - 749494 - AUXILIARY HYDRAULIC, LINE, FRONT (35) - HYDRAULIC SYSTEMS
7
83.122.ai (01)
83.122.ai (02)
4
35.525.ai (01)
3
3
35.525.aa (04)
2
6
83.122.ai (03)
55.515.ah
1
4
3
5
5
6

Артикул

Название

Примечание

Количество

1

47372129

TUBE

Boom to 4th/5th Auxiliary Hydraulic Valve

1шт.

2

47372125

TUBE

Boom to 4th/5th Auxiliary Hydraulic Valve

1шт.

3

71437349

HYD CONNECTOR,13/16"-16

4шт.

4

87599978

ELEC CONNECTOR

2шт.

5

87552188

FITTING

2шт.

6

47603802

QUICK MALE COUPLING

2шт.

7

47610741

CONSTRUCTION DIA

Boom Double Auxiliary Hydraulic, For Mechanical Carrier, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 9
