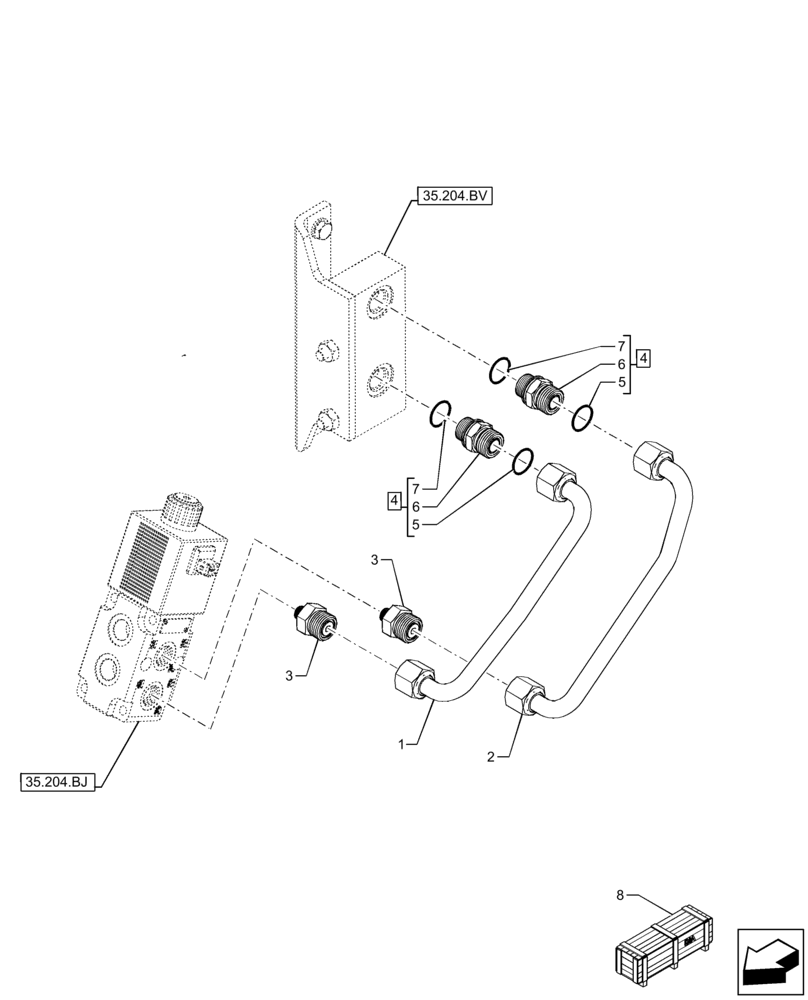

Запчасти Case IH FARMLIFT 742 (35.525.AA[06]) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, TUBE (35) - HYDRAULIC SYSTEMS

1

47441793

HYD TUBE

Rear Hydraulic Valve Port C3 to Manifold

1шт.

2

47441796

HYD TUBE

Rear Hydraulic Valve Port C2 to Manifold

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

2шт.

4

5194408

HYD CONNECTOR

ASSY, Incl 5 - 7

2шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

47613198

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, LM6.32 NRC, LM6.35 NRC, LM6.32 NRC, LM6.35 NRC

1шт.

8

47613205

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 632, FARMLIFT 635

1шт.

8

47613213

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 735, FARMLIFT 742, FARMLIFT 935, FARMLIFT 735 DA

1шт.

8

47610633

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, LM7.42, LM7.42 FLEX, LM9.35, LM9.35 FLEX, LM7.35 DA, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.
