(35.359.AZ[02]) - CONTROL VALVE, DRAIN LINE

Запчасти Case IH FARMLIFT 742 (35.359.AZ[02]) - CONTROL VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

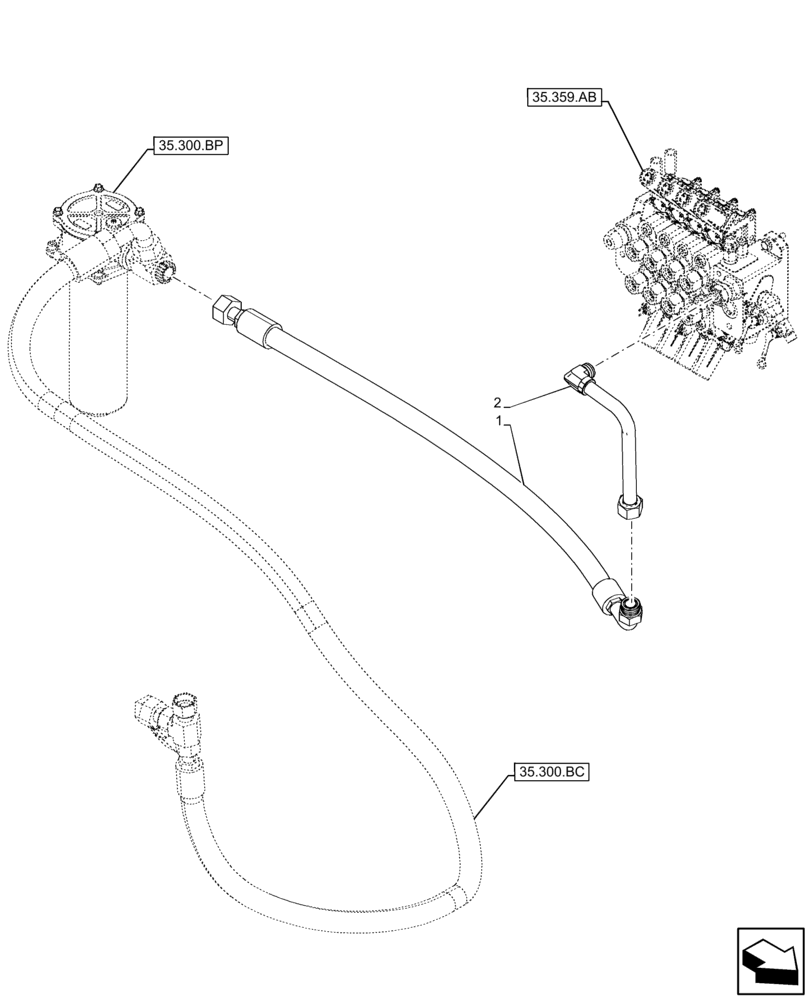

Схема запчастей Case IH FARMLIFT 742 - (35.359.AZ[02]) - CONTROL VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS
1
35.359.ab
2
35.300.bp
35.300.bc
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47525897

HYDRAULIC HOSE,25.4mm ID x 1145mm L, SAE 100R3

Directional Control Valve to Tank

1шт.

2

47525890

HYD TUBE

Directional Control Valve to Tank

1шт.

Выбрано товаров: 2
