Запчасти Case IH FARMLIFT 742 (35.359.AJ[04]) - CONTROL VALVE, SPOOL, LIFT SECTION (35) - HYDRAULIC SYSTEMS

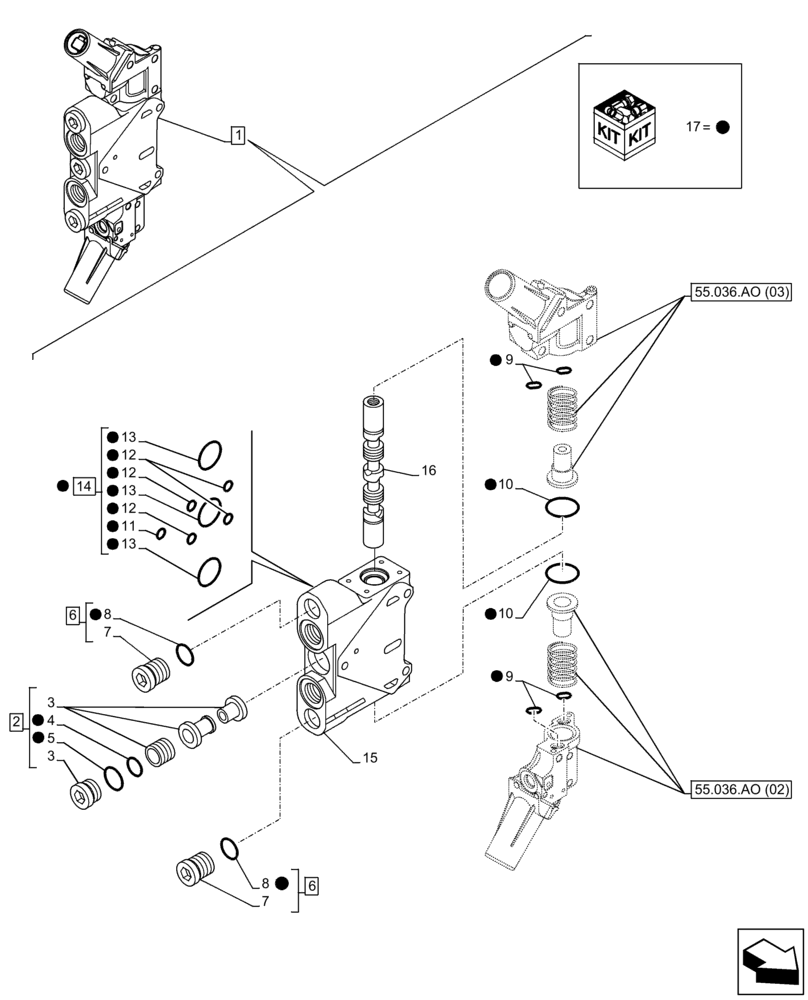

Схема запчастей Case IH FARMLIFT 742 - (35.359.AJ[04]) - CONTROL VALVE, SPOOL, LIFT SECTION (35) - HYDRAULIC SYSTEMS
55.036.ao (02)
13
17
12
2
7
3
12
4
8
17
1
9
9
17
17
7
17
16
17
13
17
10
5
17
10
12
6
11
6
13
17
17
17
17
3
17
17
15
55.036.ao (03)
17
17
8
14

Артикул

Название

Примечание

Количество

1

47711575

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

2

47569285

COMPENSATOR

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compensator, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 17

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 17

1шт.

6

47571307

PLUG

ASSY, Incl 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 6 or 17

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 17

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 17

2шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

4шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

3шт.

14

47571308

SEAL KIT

ASSY, Incl 11 - 13

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

17

47571314

SEAL KIT

Kit, Incl 4, 5, 8 - 14

1шт.

Выбрано товаров: 17
