Запчасти Case IH FARMLIFT 742 (35.359.AJ[03]) - CONTROL VALVE, SPOOL, TILT SECTION (35) - HYDRAULIC SYSTEMS

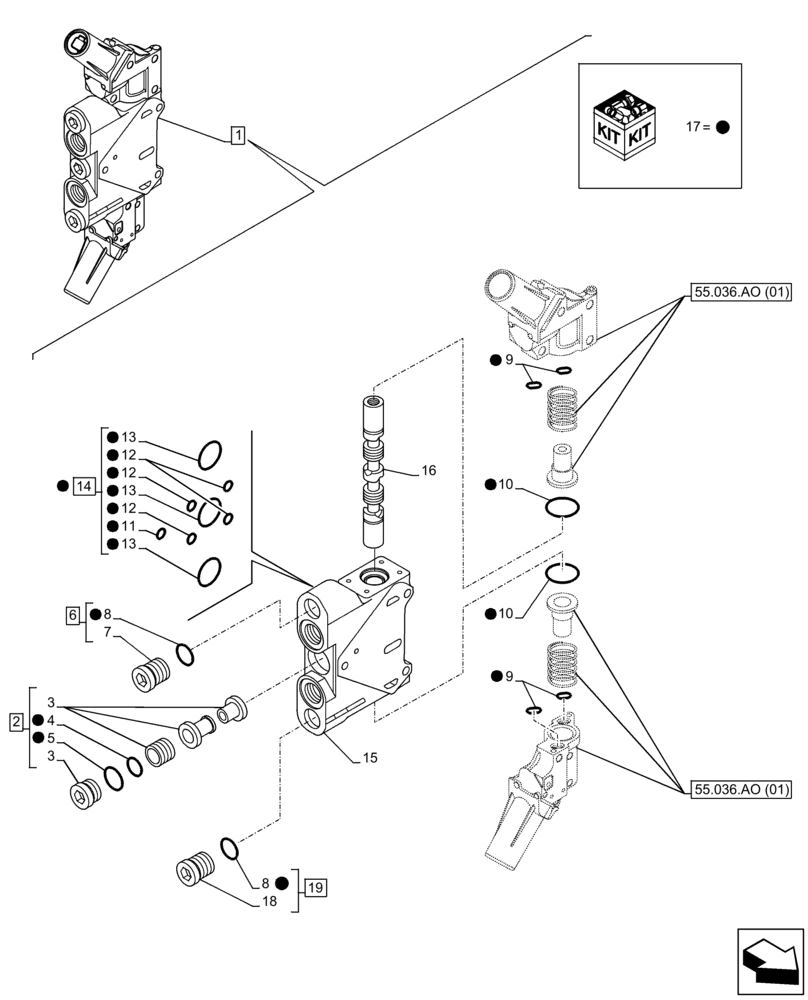

Схема запчастей Case IH FARMLIFT 742 - (35.359.AJ[03]) - CONTROL VALVE, SPOOL, TILT SECTION (35) - HYDRAULIC SYSTEMS
2
17
17
7
16
17
17
17
9
19
17
13
6
5
18
11
8
9
17
8
12
17
17
17
1
3
12
17
15
10
14
13
4
17
12
17
55.036.ao (01)
17
10
17
55.036.ao (01)
13
17
3

Артикул

Название

Примечание

Количество

1

47571359

CONTROL VALVE

ASSY, Incl 2 - 19

1шт.

2

47569285

COMPENSATOR

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compensator, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 17

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2 or in 17

1шт.

6

47569286

VALVE PRESSURE RELIE

ASSY, Incl 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 6 or 17 or 19

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 17

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 17

2шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

4шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 14

3шт.

14

47571308

SEAL KIT

ASSY, Incl 11 - 13

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

17

47571314

SEAL KIT

Kit, Incl 4, 5, 8 - 14

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 19

1шт.

19

47569288

VALVE PRESSURE RELIE

ASSY, Incl 8 (Qty 1), 18

1шт.

Выбрано товаров: 19
