(35.359.AJ[01]) - DIRECTIONAL CONTROL VALVE, COMPONENTS

Запчасти Case IH FARMLIFT 742 (35.359.AJ[01]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

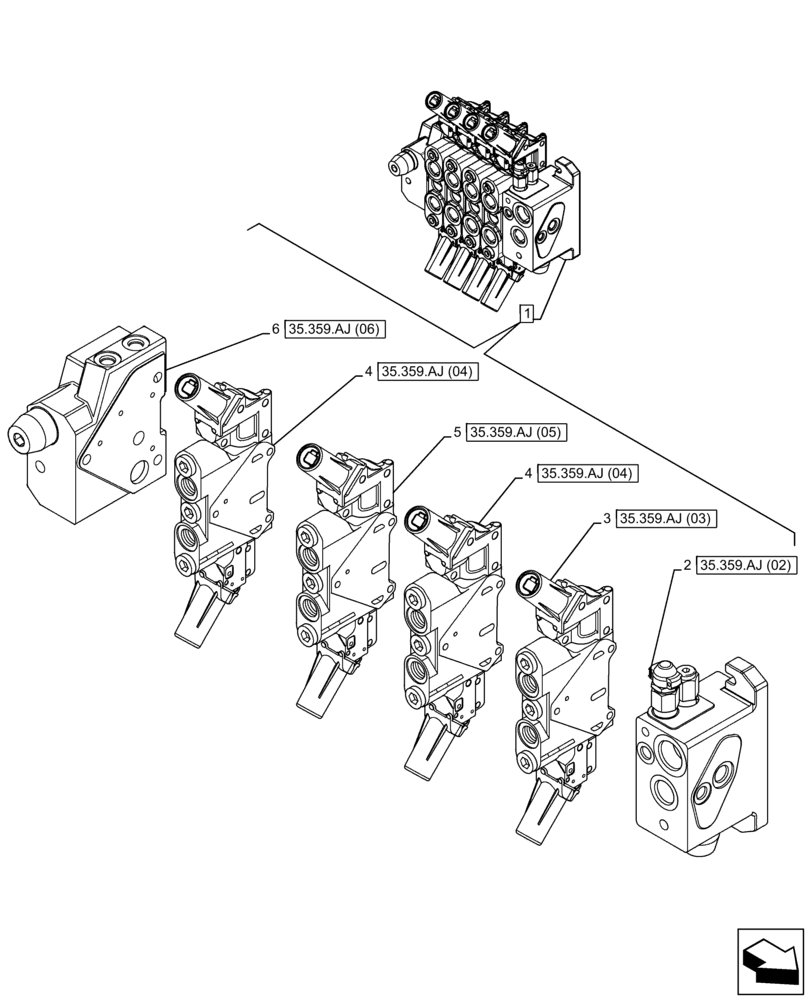

Схема запчастей Case IH FARMLIFT 742 - (35.359.AJ[01]) - DIRECTIONAL CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.aj (04)
35.359.aj (02)
35.359.aj (04)
6
4
35.359.aj (03)
1
4
2
5
35.359.aj (06)
3
35.359.aj (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84531578

CONTROL VALVE

ASSY, Incl 2 - 6

1шт.

2

47607536

CONTROL VALVE

ASSY, Inlet Element

1шт.

3

47571359

CONTROL VALVE

ASSY, Tilt Element

1шт.

4

47711575

CONTROL VALVE

ASSY, Lift Element/Telescopic Element

2шт.

5

47571370

CONTROL VALVE

ASSY, Auxiliary Element

1шт.

6

47572279

CONTROL VALVE

ASSY, Outlet Element

1шт.
