Запчасти Case IH FARMLIFT 742 (35.359.AE[07]) - CONTROL VALVE LINE, TILT SECTION, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

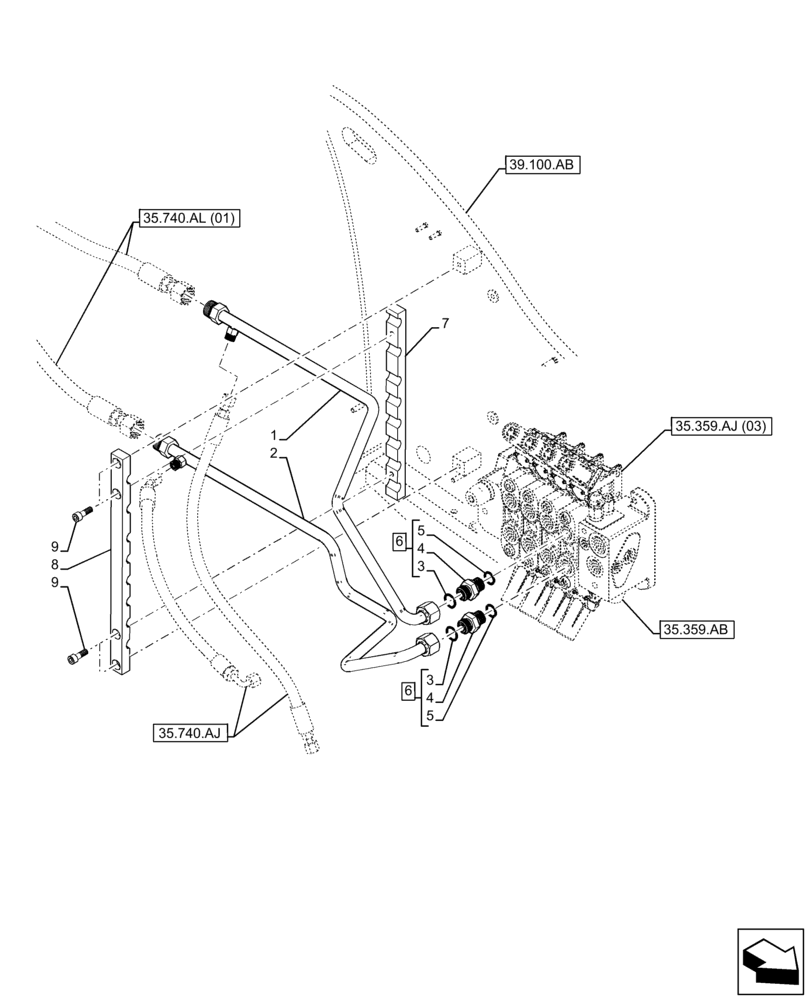

Схема запчастей Case IH FARMLIFT 742 - (35.359.AE[07]) - CONTROL VALVE LINE, TILT SECTION, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
39.100.ab
5
3
4
4
35.740.aj
2
7
6
35.740.al (01)
8
1
35.359.aj (03)
35.359.ab
3
9
6
9
5

Артикул

Название

Примечание

Количество

1

47515470

HYD TUBE

Tilt

1шт.

2

47515469

HYD TUBE

Tilt

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

6

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 3 - 5

2шт.

7

84564119

CLAMP

LH

1шт.

8

84564125

CLAMP

RH

1шт.

9

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 9
