Запчасти Case IH FARMLIFT 742 (35.359.AE[05]) - CONTROL VALVE LINE, MANIFOLD, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

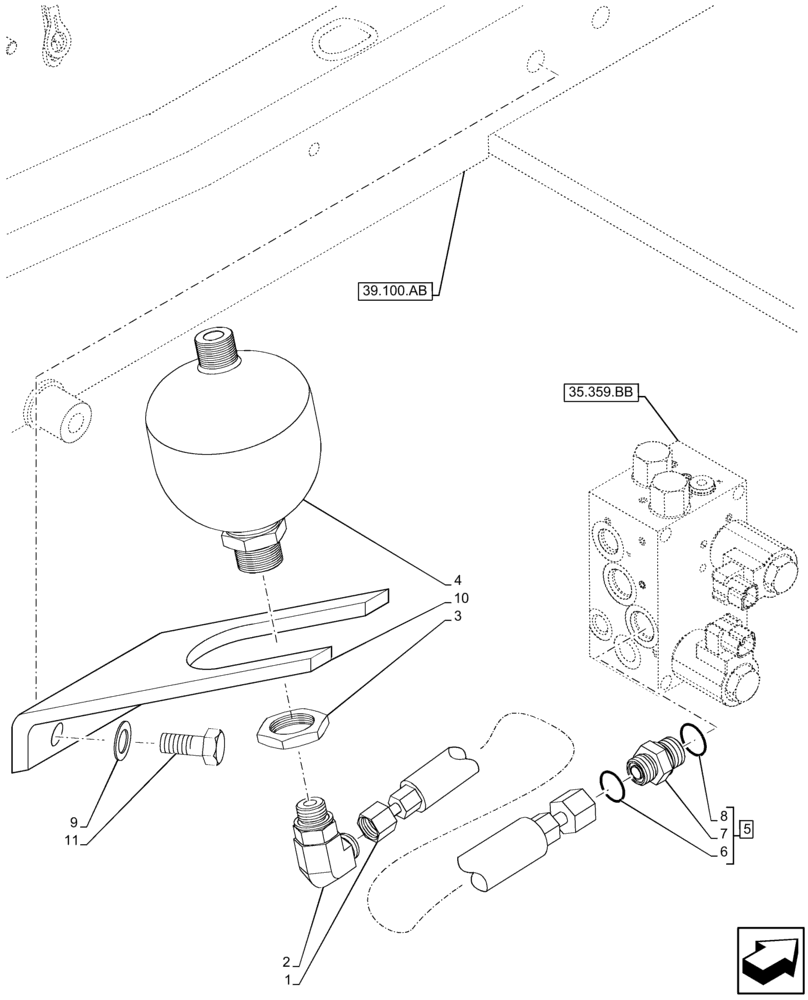

Схема запчастей Case IH FARMLIFT 742 - (35.359.AE[05]) - CONTROL VALVE LINE, MANIFOLD, ACCUMULATOR (35) - HYDRAULIC SYSTEMS
4
6
10
5
11
9
3
35.359.bb
2
7
39.100.ab
1
8

Артикул

Название

Примечание

Количество

1

47647033

HYDRAULIC HOSE

Manifold Port LP to Reservoir

1шт.

2

87725875

FITTING

1шт.

3

2120418

NUT

1шт.

4

2247095

ACCUMULATOR,0.75L

1шт.

5

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

47668195

BRACKET

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 11
